Marca: HPE

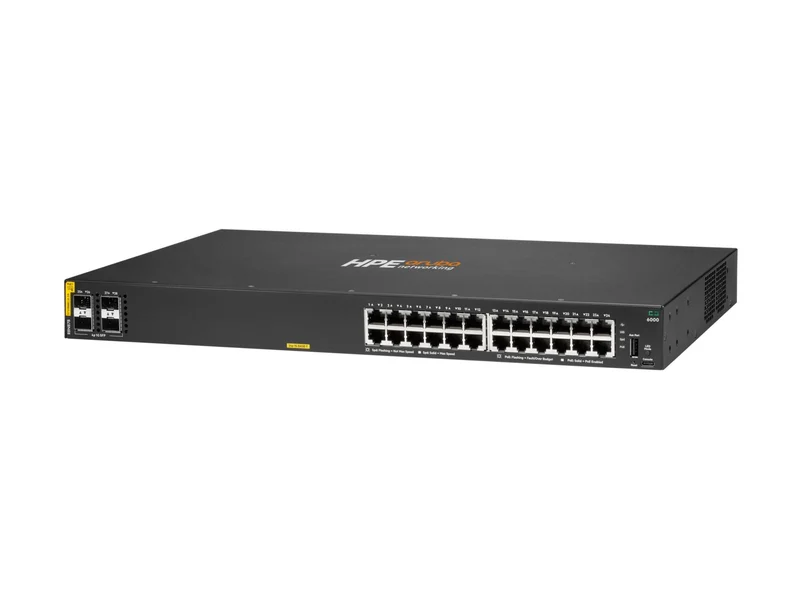

Transceptor de Red HPE Aruba Networking CX 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch
Descripción
Sobre este producto
- 🌐 Transceptor de Red HPE Aruba Networking CX 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch: para redes cableadas de oficina y datacenter.
- ✅ 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
- ✅ rack-mountable, wall-mountable
- ✅ side to side airflow
| Característica | Detalle |
|---|---|
| Marca | HPE |
| Línea de producto | HPE Aruba Networking CX |
| Modelo | 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch |
| Fabricante | Aruba |
| Velocidad de reloj | 1.016 GHZ |
| Marca del procesador | ARM |
| Número de procesador | Cortex-A9 |
| Procesadores instalados | 1 |
| Flash Memory Installed | 8 GB |
| Tecnología de memoria | DDR3 SDRAM |
| RAM instalada | 2 GB |
| Estándares | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Características | Address Resolution Protocol, Class of Service (CoS), Layer 2 switching, Layer 3 routing, Link Layer Discovery Protocol, Multiple Spanning Tree Protocol (MSTP) support, PoE Class 4, Rapid PVST+ (RPVST+), Rapid Spanning Tree Protocol (RSTP) support, Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unsupported Transceiver Mode (UTM) |
| Form Factor (Hubs & Switches) | Rack-mountable, Wall-mountable |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 8192 entries |
| Manageable | Yes |
| PoE Budget | 370 watt |
| Ports | 24 |
| Power Over Ethernet (PoE) | PoE+ |
| Tipo de producto | Switch |
| Gestión remota | CLI, MIB, RMON, SNMP, SNMP 2, SNMP 3 |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Interfaces | 1 x USB Type A host, 1 x USB-C console, 24 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4, 4 x Gigabit LAN SFP uplink |
| Port Quantity | 24 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | Gigabit SFP (uplink) |
| Frequency | 50/60 hertz |
| Voltaje requerido | AC 100-127/200-240 volt |
| Encryption | SSL |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Humedad de operación | 5 - 95% (non-condensing) |
| Operating System Required | AOS-CX |
| Airflow Direction | Side to side airflow |
| Authentication Method | RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+ |
| Capacity | IGMP groups: 512, IPv4 ACL entries (ingress): 1914, IPv4 host table (ARP): 1024, IPv4 routes (Unicast): 512, IPv6 ACL entries (ingress): 957, IPv6 host table (ND): 512, IPv6 routes (Unicast): 512, MAC ACL entries (ingress): 1914, MLD groups: 512, Packet buffer size: 12.38 MB, Switched virtual interfaces (SVIs) (dual stack): 16 |
| Device Type | Internal power supply |
| Cantidad por empaque | 1 |
| Performance | Latency (1 Gbps): 1.5 µs, Switching capacity: 56 Gbps, Throughput: 41.6 Mpps |
| Ports (2nd) Quantity | 4 |
| Rack Mounting Kit | Included |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 8.11 lbs |
| Ancho | 17.4 inch |
| Profundidad | 10.6 inch |
| Color | Black, Silver |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
| Standby Power Consumption | 16 watt |
