Marca: Aruba

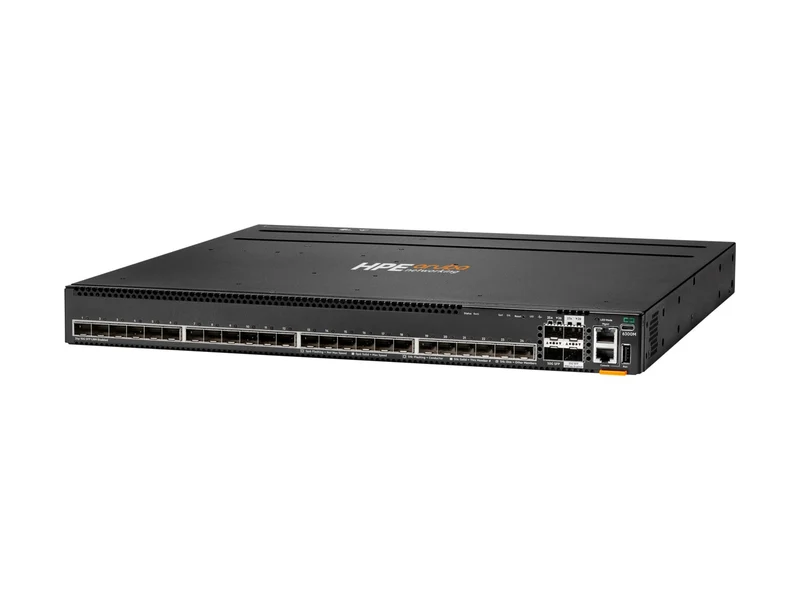

Transceptor de Red Aruba HPE Networking 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch
Descripción
Sobre este producto
- 🔌 24 puertos SFP+ 1/10G con soporte LRM más uplinks 2x 50G y 2x 25G con MACsec
- 🔒 Seguridad de enlace MACsec para proteger el tráfico en la capa de acceso
- 📊 Visibilidad incomparable con analítica integrada para monitoreo y diagnóstico en tiempo real
- 🔧 Puertos de gestión completos: USB-C y RJ Console, OOBM, USB Type-A y dongle Bluetooth para la CX Mobile App
- 🧠 Switch administrado Layer 3 (L3) montable en rack de la serie HPE Aruba 6300M
| Característica | Detalle |
|---|---|
| Marca | Aruba |
| Línea de producto | HPE Aruba |
| Modelo | 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch |
| Fabricante | Aruba |
| Velocidad de reloj | 1.8 GHZ |
| Marca del procesador | ARM |
| Procesadores instalados | 1 |
| Flash Memory Installed | 32 GB |
| Tecnología de memoria | DDR4 SDRAM |
| RAM instalada | 8 GB |
| Advanced Switching | Layer 3 |
| Estándares | IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ae |
| Características | 16MB packet buffer, Access Control List (ACL) support, ARP support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, DHCP support, Dual firmware images, Dynamic IPv6 lockdown, Fan tray, High Availability, IGMP snooping, IP multicast, IPv4 and IPv6 dual stack, IPv6 support, Jumbo Frames support, LLDP support, LRM optics support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), MLD snooping, Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Strict Priority (SP), Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Unicast Storm protection, Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32768 entries |
| Manageable | Yes |
| Ports | 24 |
| Tipo de producto | Switch |
| Gestión remota | CLI, HTTPS, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
| Routing Protocol | BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MSDP, MSTP, OSPF, OSPFv2, OSPFv3, PIM-SM, Policy-based routing (PBR), RSTP, Static IPv6 routing, STP, VRRP |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| QSFP Slots | 1 Gigabit / 10 Gigabit / 25 Gigabit SFP |
| Interfaces | 1 x console, 1 x management, 1 x USB Type A, 1 x USB-C console, 2 x 10/25Gbit LAN SFP with MACsec, 2 x 1Gbit/10Gbit/25Gbit/50Gbit SFP, 24 x Gigabit / 10Gbit LAN SFP+ with MACsec |
| Port Quantity | 24 |
| Port Type | 1 Gigabit / 10 Gigabit SFP+ |
| Ports Type (2nd) | 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Frequency | 50/60 hertz |
| Hot-Plug | Hot-plug |
| Fuentes soportadas | 2 |
| Fuente redundante | Optional |
| Fuente redundante soportada | 1+1 (with optional power supply) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Temp. máx. de operación | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Humedad de operación | 15 - 95% (non-condensing) |
| Airflow Direction | Front and side to back |
| Authentication Method | RADIUS, Secure Shell (SSH), TACACS+ |
| Capacity | IGMP groups: 8192, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs): 1024 |
| Device Type | Internal power supply |
| Cantidad por empaque | 1 |
| Performance | Latency (1 Gbps): 4.24 µs, Latency (10 Gbps): 1.5 µs, Latency (25 Gbps): 2.91 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 880 Gbps, Throughput: 660 Gbps |
| Ports (2nd) Quantity | 2 |
| Ports (3rd) Quantity | 2 |
| Rack Mounting Kit | Included |
| Service Activation | No |
| Accesorios incluidos | Fan tray |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 12.06 lbs |
| Ancho | 17.4 inch |
| Profundidad | 15.2 inch |
| Color | Black |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
