Marca: Supermicro

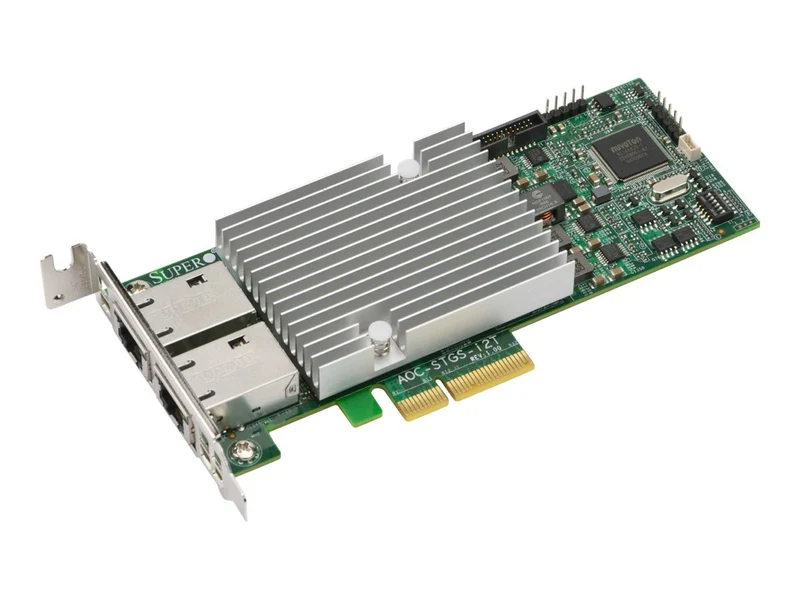

Tarjeta de Red Supermicro AOC-STGS-i2T
Descripción
Sobre este producto
- 🖧 Tarjeta de red Supermicro AOC-STGS-i2T basada en chipset Intel X550
- ⚡ 2 puertos 10Gbase-T (10 GbE / FCoE)
- 🔌 Interfaz PCIe 3.0 x4 de perfil bajo (low profile)
- 🧩 Soporta VXLAN y NVGRE para conectividad flexible
- 🛡️ MAC+PHY 10GbE integrado de bajo consumo con gestión de activos y detección térmica
| Característica | Detalle |
|---|---|
| Marca | Supermicro |
| Línea de producto | Supermicro |
| Modelo | AOC-STGS-i2T |
| Fabricante | Super Micro Computer Inc |
| Marca del procesador | Intel |
| Número de procesador | X550-AT2 |
| Procesadores instalados | 1 |
| Cable Type | Ethernet 10GBase-T |
| Estándares | IEEE 802.1Q, IEEE 802.3az |
| Connectivity Technology | Wired |
| Protocolos de enlace | 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) |
| Data Transfer Rate | 10 GBps |
| Características | Anti-spoofing protection, Checksum offload support, Data Center Bridging (DCB), DMA Coalescing (DMAC), Energy Efficient Ethernet, Extended Message-Signaled Interrupts (MSI-X), FCoE boot, FCoE Coalescing and Direct Data Placement, FCoE CRC Offload, Intel Flow Director, IPv4 support, IPv6 support, iSCSI remote boot, Multi-mode I/O virtualization operations, Network Virtualization using Generic Routing Encapsulation (NVGRE), Packet filtering, PXE support, Receive Side Coalescing (RSC), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), TCP/IP checksum offload, Virtual Extensible LAN (VXLAN), Virtual Machine Device Queues (VMDq) |
| Factor de forma | Plug-In Card |
| Host Interface | PCI Express 3.0 x4 |
| Low Profile | Low profile |
| Network Standard | TCP/IP, UDP/IP |
| PCI Specification Revision | PCIe 3.0 |
| Tipo de producto | Network adapter |
| Interfaces | 2 x 10GBase-T - RJ-45 |
| Port Quantity | 2 |
| Network & Adapter Ports | 10Gb Ethernet / Fibre Channel over Ethernet (FCoE) |
| Power Consumption Operational | 11 watt |
| Temp. máx. de operación | 131 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| Capacity | Jumbo frame size: 15.5 KB |
| Cantidad por empaque | 1 |
| Alto | 2.7 inch |
| Weight | 4.23 ounce |
| Profundidad | 5.9 inch |
| Certificado ENERGY STAR | No |
| Cumple EPEAT | No |
| TCO Certified | No |
