Marca: Intel

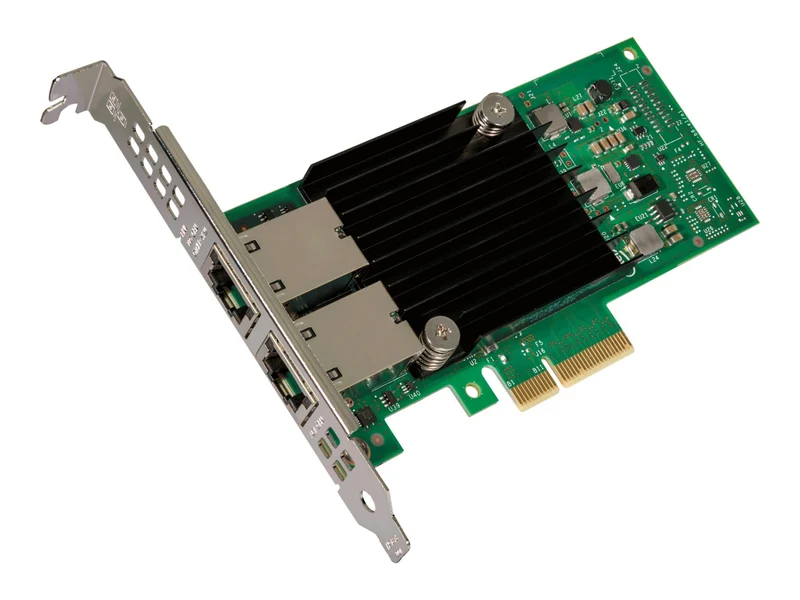

Tarjeta de Red Intel Ethernet Converged Network Adapter X550-T2
Descripción
Sobre este producto
- 🔌 Interfaz: tarjeta PCIe 3.0 de perfil bajo con el controlador Intel Ethernet X550.
- ⚡ 2 puertos: dos puertos de 10 Gb Ethernet (10GBASE-T) en un solo adaptador.
- 🚀 Velocidad: solución 10GbE de chip único para el mercado de servidores.
- 💰 Costo eficiente: diseño 10GBASE-T de bajo costo para plataformas de servidor actuales.
- 🔎 Modelo: Intel Ethernet Converged Network Adapter X550-T2.
| Característica | Detalle |
|---|---|
| Marca | Intel |
| Línea de producto | Intel Ethernet Converged Network Adapter |
| Modelo | X550-T2 |
| Fabricante | Intel |
| Cable Type | Ethernet 10GBase-T |
| Estándares | IEEE 802.1Q, IEEE 802.1Qbg |
| Connectivity Technology | Wired |
| Protocolos de enlace | 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), iSCSI |
| Data Transfer Rate | 10 GBps |
| Características | Extended Message-Signaled Interrupts (MSI-X), Flexible Port Partitioning (FPP), Intel Flow Director, Intelligent offloads, IPv4 support, IPv6 support, MAC address filtering, Multi-mode I/O virtualization operations, Network Virtualization using Generic Routing Encapsulation (NVGRE), PXE 2.0 support, Quality of Service (QoS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), Virtual Extensible LAN (VXLAN), Virtual Machine Device Queues (VMDq), VLAN filtering |
| Factor de forma | Plug-In Card |
| Host Interface | PCI Express 3.0 |
| Low Profile | Low profile |
| Network Standard | IPSec, iSCSI, NFS, SCTP, SMB, TCP/IP, UDP/IP |
| PCI Specification Revision | PCIe 3.0 |
| Tipo de producto | Network adapter |
| Gestión remota | DMI 2.0, SNMP |
| Interfaces | 2 x 10GBase-T - RJ-45 |
| Port Quantity | 2 |
| Network & Adapter Ports | 10Gb Ethernet |
| Operating System Required | FreeBSD 10.2, Linux Kernel 2.6 or later, Microsoft Windows 7 64-bit Edition SP1, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 7.1, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12, VMware ESXi 5.5, VMware ESXi 6.0, Windows 8 / 8.1 / 10 (64 bits) |
| Capacity | QoS virtual ports: up to 64, VLAN tags: up to 4096 |
| Cantidad por empaque | 1 |
| Accesorios incluidos | Low-profile bracket |
