Marca: Cradlepoint

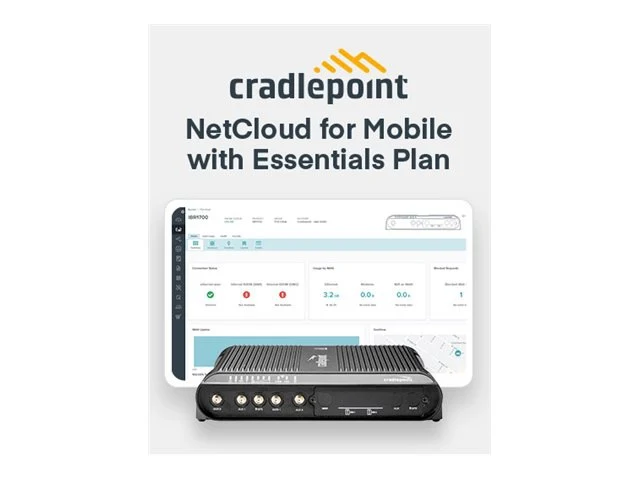

Router Cradlepoint IBR1700 Series IBR1700-1200M-B
Descripción
Sobre este producto
- 📶 Plataforma LTE Gigabit-class rugerizada para conectividad persistente in-vehicle.
- 🔌 Switch WWAN de 4 puertos con conectividad 1GbE Dual Band.
- 📡 Conectividad celular 3G/4G para despliegues móviles.
- 🚗 Diseño in-vehicle para conectar todo dentro del vehículo.
- ☁️ Ericsson NetCloud: conectividad, red, seguridad y ubicación (incluye 3 años del plan NetCloud Mobile Essentials).
| Característica | Detalle |
|---|---|
| Marca | CradlePoint |
| Línea de producto | Cradlepoint IBR1700 Series |
| Modelo | IBR1700-1200M-B |
| Fabricante | CradlePoint |
| Broadband Transmission Technology | 2.4 GHz / 5 GHz |
| Cellular Data Connectivity Technology | DC-HSPA+, LTE Advanced Pro, WCDMA |
| Estándares | Wi-Fi CERTIFIED |
| Connectivity Technology | Wired, Wireless |
| Protocolos de enlace | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Características | 2x2 MU-MIMO technology, 3GPP Release 12, 4x4 MU-MIMO technology, Firewall protection, Ignition Sense, Reverse polarity protection, Transient voltage protection |
| Form Factor (Hubs & Switches) | In-vehicle |
| Integrated Switch | 4-port switch |
| Key Features | Firewall, USB port, VPN support |
| Tipo de producto | Wireless router |
| Status Indicators | GPS, Modem, Power, Signal strength, WAN, Wi-Fi |
| WAN Ports Quantity | 1 |
| Wireless LAN | 802.11a/b/g/n/ac Wave 2 |
| Modem Transmission Data Rate | 1.2 GBps |
| Expansion Slots | 2 Mini-SIM |
| Interfaces | Antenna: 1 x SMA - GPS, Antenna: 4 x SMA - LTE, Antenna: 6 x RP-SMA - Wi-Fi, Console: 1 x RS-232 - 9 pin D-Sub (DB-9), LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Peripheral: 1 x GPIO, USB 2.0: 1 x 4 pin USB Type A, WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Bundled Services | 3 years NetCloud Mobile Essentials Plan |
| Power Consumption Operational | 14 watt |
| Antenna Form Factor | External detachable |
| Dispositivos integrados | Beidou, Galileo, GLONASS, GPS |
| Encryption | WEP, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Line Coding Format | 256 QAM |
| Temp. máx. de operación | 158 degree Fahrenheit |
| Temp. mín. de operación | -22 degree Fahrenheit |
| MTBF | 286,853 Hours |
| Humedad de operación | 5 - 95% |
| Capacity | Concurrent TCP sessions: 32000, Concurrent VPN tunnels: 10, Typical client count: 30 |
| País | North America (US and Canada) |
| Cantidad por empaque | 1 |
| Service Activation | No |
| Bridge & Router | Stateful firewall throughput: 940 Mbps, VPN throughput (IPSec): 20 Mbps |
| Cables | 1 x GPIO cable - 10 ft |
| Alto | 1.7 inch |
| Weight | 3.75 lbs |
| Ancho | 8.8 inch |
| Profundidad | 7.5 inch |
| Color | Black |
