Marca: KYORITSU

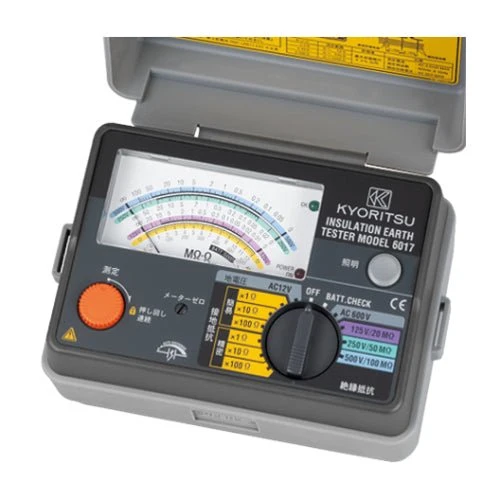

KYORITSU MODEL 6017 Multi Function Installation Tester

266,47 €441,75 €39% OFF
Cantidad

Descripción

KYORITSU MODEL 6017 Multi Function Installation Tester

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • • Designed to meet IEC 61010-1 CAT III 600V
  • • Test leads with remote control switch.
  • (For insulation&Simplified Earth Test)
  • • Back light function.
  • • Color coded scales and range switch position for easy reading.
  • • Automatic warning when resistance of auxiliary earth spikes
  • is in excess of tolerance.
  • • Can be hung around the neck for both hand’s operation.

Specifications

Test Voltage 125V/20MΩ 250V/50MΩ 500V/100MΩ
Accuracy ±5%rdg
Simplified Precision measurement 12Ω/120Ω/1200Ω
Accuracy ±3% of full scale value
0-600V AC ±3% of full scale value
0-60V AC ±3% of full scale value
Safety Standard IEC 61010-1 CAT III 600V Pollution Degree 2 IEC 61010-2-031 IEC 61557
Withstand Voltage 5550V AC for 1 minute
Power Source LR6 (1.5V) × 8
Dimensions 130(L) × 183(W) × 100(D)mm
Weight 1000g approx.
Accessories 7103A (Test leads with remote control switch), 7131B (Safety crocodile clip [black]), 7161A (Flat test prod [black]) 8017 (Extension prod), 9092 (Cord case), 9121 (Shoulder strap), Battery LR6 (1.5V) × 8, Instruction Manual
Optional Accessories 7100 (Precision measurement Cord Set)

Catalog reference: KYORITSU General Catalog 2026, page 55

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
