Marca: KYORITSU

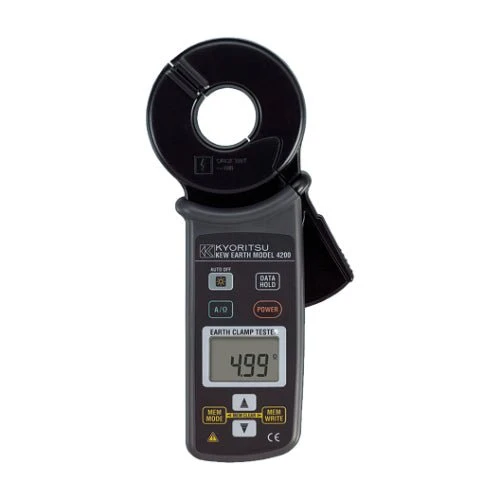

KYORITSU MODEL 4200 Earth Clamp Tester

696,31 €1155,83 €39% OFF
Cantidad

Descripción

KYORITSU MODEL 4200 Earth Clamp Tester

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • The earth resistance from 0.05 to 1500Ω can be measured without the auxiliary earth spikes in multi-earthing systems
  • True RMS leakage or phase current readings from 0.1mA to 30.0A provides vital additional information in earthing networks
  • Filter function offers increased immunity to electrical noise and a Noise mark appears in excessively high noisy environments
  • Memory function up to 100 data

Specifications

Earth resistance (Auto-ranging) 20.00/200.0/1500Ω ±1.5%±0.05Ω(0.00 to 20.99Ω) *1 ±2%±0.5Ω(16.0 to 99.9Ω) ±3%±2Ω(100.0 to 209.9Ω) ±5%±5Ω(160 to 399Ω) ±10%±10Ω(400 to 599Ω) Values are displayed, but accuracy isn't guaranted(600 to 1580Ω)
AC current (50/60Hz) (Auto-ranging) 100.0/1000mA/10.00/30.0A ±2%±0.7mA(0.0 to 104.9mA) ±2%(80mA to 31.5A)
Operating indication Earth resistance function : Constant voltage injection Current detection (Frequency : Approx.2400Hz) Dual Integration AC current function : Successive approximation
Over-range indication "OL"is displayed when input exceeds the upper limit of a measuring range
Response time Approx. 7 seconds (Earth resistance) Approx. 2 seconds (AC current)
Sample rate Approx. 1 times per second
Current consumption Approx. 50mA (max.100mA)
Measurement time Approx.12 hours (when R6 is used) Approx.24 hours (when LR6 is used)
Auto power off Turns power off about 10 minutes after the last button operation.
Conductor size Approx. Ø32mm
Applicable standards IEC 61010-1 CAT Ⅳ 300V Pollution degree2 IEC 61010-2-032, IEC 61326 (EMC)
Power source LR6/R6 (AA)(1.5V) x 4
Dimension 246(L)×120(W)×54(D)mm
Weight Approx. 780g (including batteries)
Accessories 8304 (Resister for operation check) 9166 (Carrying case[Hard]) R6 x 4, Instruction manual

Catalog reference: KYORITSU General Catalog 2026, page 53

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
