Marca: KYORITSU

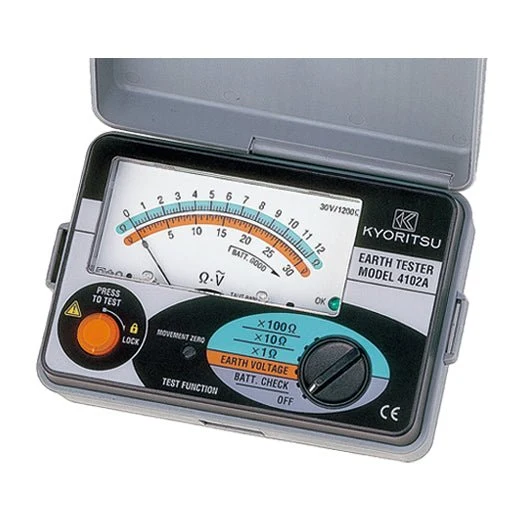

KYORITSU MODEL 4102A Earth Tester

405,20 €222,69 €Oferta
Cantidad

Descripción

KYORITSU MODEL 4102A Earth Tester

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • 3-Pole and 2-Pole Earth Resistance
  • The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes
  • Dust and drip proof (designed to IEC 60529 IP54)
  • Earth resistance value can be read directly from the scale
  • Designed to meet IEC 61010-1 safety standard
  • Capable of measuring earth voltage
  • Small and lightweight. Shock resistant new case material
  • 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test
  • Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by “OK” lamp Lead wire connection to C and E terminals is good when “OK” lamp is illuminated Soft case *Please check here for the hard case model.

Specifications

Earth resistance measurement × 1ΩRange | × 10Ω | × 100Ω
Accuracy ±3% of full scale
Accuracy ±3% of full scale
Overload protection Earth resistance : 276V AC/DC (10 seconds) Earth voltage : 276V AC/DC (10 seconds)
Applicable standards IEC 61010-1 CAT Ⅲ300 V Pollution degree 2 IEC 61010-2-030, IEC 61557-1,5, IEC 60529 (IP54)
Power source R6(AA)(1.5V) × 6
Dimension 105(L) × 158(W) × 70(D) mm (including case lid)
Weight Approx. 600g (including batteries and case lid)
Accessories 7095A (Earth resistance test leads (Red 20m, Yellow 10m, Green 5m/1set)) 7127B (Simplified measurement probe) 8032 (Auxiliary earth spikes[2 spikes/1set]) 9121 (shoulder strap) 9084 (Carrying case) R6(AA) × 6, Instruction manual
Optional accessories 7245A (Precision measurement cord set) 8259 (Adapter for measurement terminal) 9164 (Carrying case [Hard])

Catalog reference: KYORITSU General Catalog 2026, page 49

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
