Marca: KYORITSU

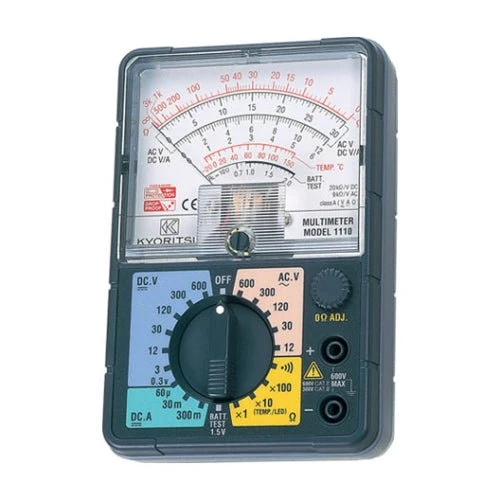

KYORITSU MODEL 1110 Analog Multimeter

120,57 €72,40 €Oferta
Cantidad

Descripción

KYORITSU MODEL 1110 Analog Multimeter

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • High sensitivity DC20kΩ/V
  • 1m drop-proof heavy duty design
  • Can measure line voltage up to AC 600V (Voltage to ground MAX AC 300V) (Protected by 600V ceramic fuse against accidental overload)
  • Continuity buzzer, battery check, LED check function
  • Skeleton type robust and clear case with carrying handle furnished as standard accessory

Specifications

DC V 0.3V (16.7kΩ/V) ±3% of FS 3/12/30/120/300/600V (20kΩ/V) ±3% of FS
AC V 12V (9kΩ/V) ±4% of FS 30/120/300/600V (9kΩ/V) ±3% of FS
DC A 60µA/30/300mA ±3% of FS
Ω 3/30/300kΩ ±3% of scale length
Continuity buzzer Buzzer sounds below 100Ω
Battery test 1.5V (0.7 to 2V) ±3% of FS (10Ω load)
Temperature Possible with the temperature probe 7060 (discontinued).
LED Approx. 10mA at 0Ω (at 3V of battery voltage)
Applicable standards IEC 61010-1 CAT III 300V / CAT II 600V Pollution Degree 2 IEC 61010-2-031
Power source R6 (AA) (1.5V) × 2
Dimension 140(L) × 94(W) × 39(D) mm
Weight Approx. 280g
Accessories 7066A (Test leads) 8923 (Fuse[0.5A/600V]) × 1 (included), 1 (spare) 9103 (Carrying case) R6 (AA) × 2 Instruction Manual

Catalog reference: KYORITSU General Catalog 2026, page 18

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
