Marca: KYORITSU

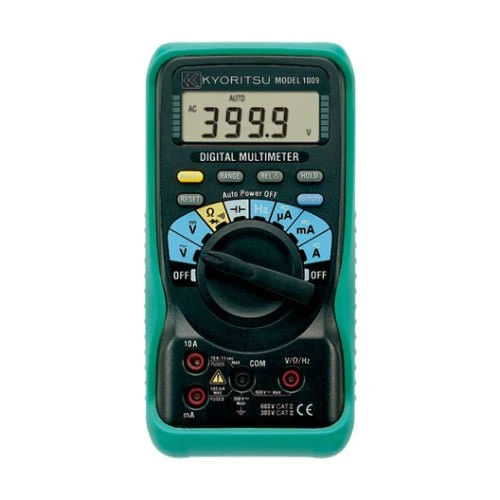

KYORITSU MODEL 1009 Digital Multimeter

80,05 €44,75 €Oferta
Cantidad

Descripción

KYORITSU MODEL 1009 Digital Multimeter

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • Display : 3999 counts
  • Auto-ranging and manual ranging selector provided (with range hold feature)
  • Resistance range provides audible continuity test
  • Automatically turns power off in about 30 minutes to conserve battery life
  • Direct current measurement up to 10A AC and DC

Specifications

DC V 400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.6%rdg±4dgt (400mV/4/40/400V) ±1.0%rdg±4dgt (600V)
AC V 400mV/4/40/400/600V (Input Impedance 10MΩ) ±1.6%rdg±4dgt (20 to 400mV) ±1.3%rdg±4dgt (4/40V) ±1.6%rdg±4dgt (400/600V)
DC A 400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt (400/4000µA) ±1.0%rdg±4dgt (40/400mA) ±1.6%rdg±4dgt (4/10A)
AC A 400/4000µA/40/400mA/4/10A ±2.6%rdg±4dgt (400/4000µA) ±2.0%rdg±4dgt (40/400mA/4/10A)
Ω 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) ±2.0%rdg±4dgt (40MΩ)
Continuity buzzer 0 to 400Ω (Buzzer sounds below 100Ω)
Diode test 1.5V open circuit voltage: Approx. 0.4mA Test Current
Capacitance 40/400nF/4/40/100µF
Frequency 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
DUTY 0.1 to 99.9% (Pulse width/Pulse period) ±2.5%±5dgt
Applicable standards IEC 61010-1 CAT III 300V, IEC 61010-2-031, IEC 61326
Power source R6 (1.5V) × 2
Dimension 161(L) × 82(W) × 50(D)mm
Weight Approx. 280g
Accessories 7066A (Test leads) 8919 (Ceramic fuse[10A/600V]) × 1 (included) 8923 (Fuse [0.5A/600V])× 1 R6× 2 Instruction Manual
Optional accessories 7234 (Crocodile clip test lead) 9095 (Carrying case)

Catalog reference: KYORITSU General Catalog 2026, page 19

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
