Marca: KYORITSU

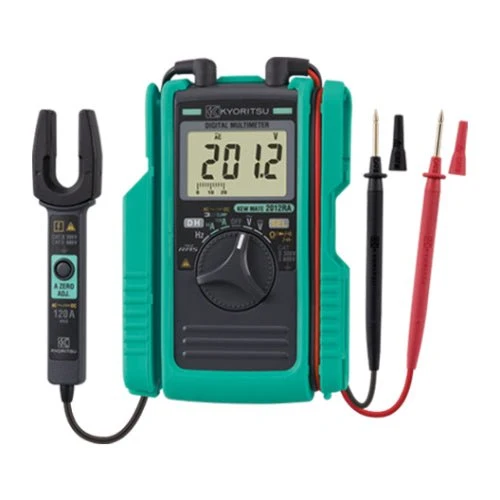

KYORITSU KEW MATE 2012RA Digital Multimeter With AC/DC Clamp Sensor

217,52 €132,90 €Oferta
Cantidad

Descripción

KYORITSU KEW MATE 2012RA Digital Multimeter With AC/DC Clamp Sensor

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 120A
  • Cable strength increased with robust cable protection
  • Test probe can be fixed to the holster
  • Can measure AC/DC current and voltage
  • Pocket size and heavy duty design
  • Test lead cap to protect from short circuit accident
  • The open jaws are thin, perfect to clamp wires even in tight spaces

Specifications

DC V 600.0mV/6.000/60.00/600.0V (Input impedance: Approx. 10MΩ) ±1.0%rdg±3dgt
AC V 6.000/60.00/600.0V (Input impedance: Approx. 10MΩ) ±1.5%rdg±5dgt (45 to 400Hz)
DC A 60.00/120.0A ±2.0%rdg±8dgt (60A) ±2.0%rdg±5dgt (120A)
AC A 60.00/120.0A ±2.0%rdg±5dgt (45 to 65Hz)
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±1.0%rdg±5dgt (600Ω/6/60/600kΩ) ±2.0%rdg±5dgt (6MΩ) ±3.0%rdg±5dgt (60MΩ)
Continuity buzzer Buzzer sounds below 35±25Ω
Diode test 2.000V ±3.0%rdg±5dgt Open circuit voltage: Approx. 2.7V
Capacitance 400.0nF/4.000/40.00µF ±2.5%rdg±10dgt
Frequency (AC A) 99.99/400.0Hz ±0.2%rdg±2dgt (100Hz) ±0.1%rdg±1dgt (400Hz) (AC V) 99.99/999.9Hz/9.999/99.99/300.0kHz ±0.2%rdg±2dgt (100Hz) ±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz) (Input sensitivity Current: more than 6A Voltage: more than 6V [to 10kHz]/more than 20V [10 to 300kHz])
Conductor size Ø12mm max.
Applicable standards IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS)
Power source R03 (AAA)(1.5V) × 2 * Continuous measuring time: DCV: approx. 150hours, ACA: Approx. 25hours (Auto power save: Approx. 15 minutes)
Dimension 128 (L) × 92 (W) × 27 (D) mm
Weight Approx. 220g (including batteries)
Accessories R03 (AAA) × 2 Instruction manual
Optional accessories 9107 (Soft case)

Catalog reference: KYORITSU General Catalog 2026, page 21

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
