Marca: KYORITSU

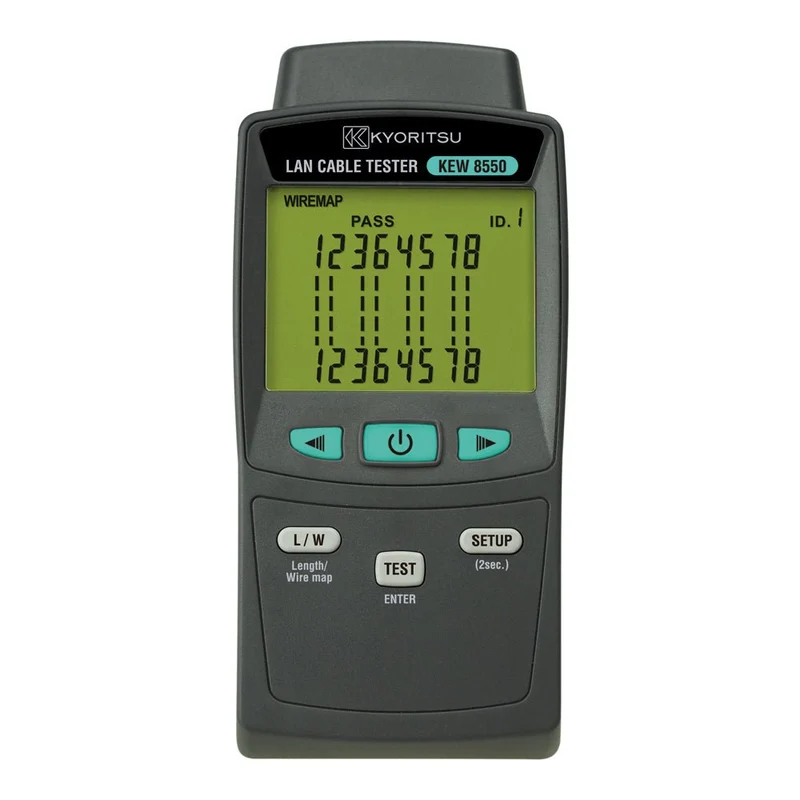

KYORITSU KEW 8550 LAN Cable Tester

345,42 €190,08 €Oferta
Cantidad

Descripción

KYORITSU KEW 8550 LAN Cable Tester

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • Wiremap function to check wiring just by one push button.
  • Incorrect wiring check function including Split pair.
  • Can measure the length of cable.
  • Backlight automatically turns on when powered on.
  • Can track up to 8 cables by using optional remote units.

Specifications

Measurable connector RJ45 connector
Measurable cable Twisted-pair cable(shielded wire(STP), unshielded wire(UTP))
Measurable cable category CAT5, CAT5e, CAT6, CAT6A
Wiremap function （Testable length range 100m or less） Opens, shorts, crossed, reversed, transposed, split pairs, and shielded / unshielded
Cable length measurement 0.1 to 255m
Accuracy ±10% ±1m
Operating temperature & humidity range 0 to 40℃, relative humidity of 80% or less(no condensation)
Storage temperature & humidity range -10 to 60℃, relative humidity of 70% or less(no condensation)
Applicable standard IEC 61326-1(EMC)
Power source R03 / LR03(AAA)(1.5V)×6
Dimension Display unit：156(L)×73(W)×35(D)mm Remote unit：72(L)×23(W)×24(D)mm
Weight Display unit：Approx.245g(including batteries) Remote unit： Approx. 25g
Accessories 8551-1 (Remote unit (ID.1)) 9201 (Carrying case) LAN cable × 2 Batteries, Instruction manual
Optional accessories 8551-25 (Remote units (ID.2 to 5)) 8551-68 (Remote units (ID.6 to 8))

Catalog reference: KYORITSU General Catalog 2026, page 87

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
