Marca: KYORITSU

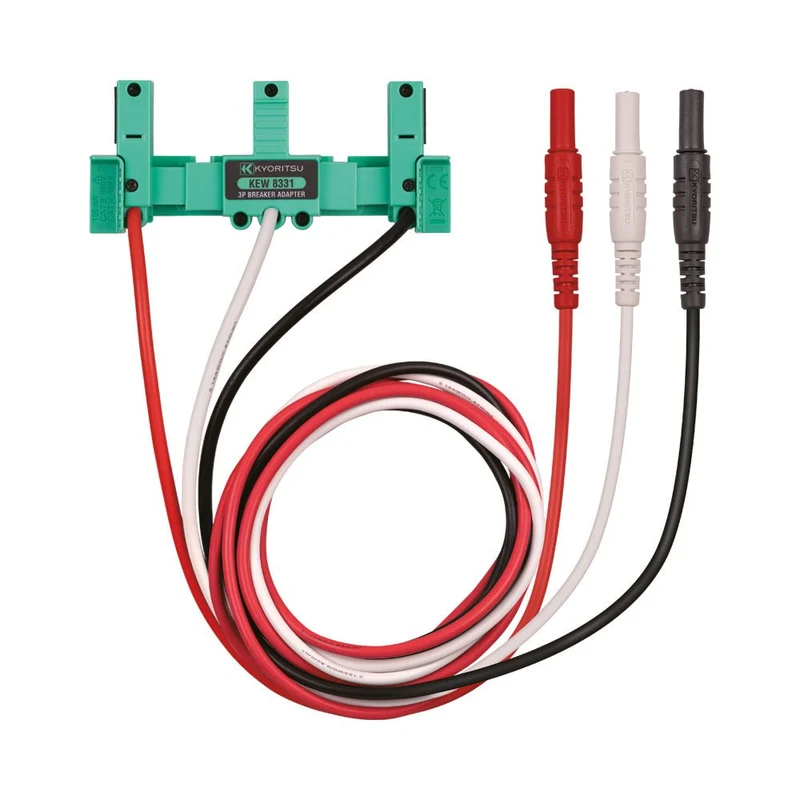

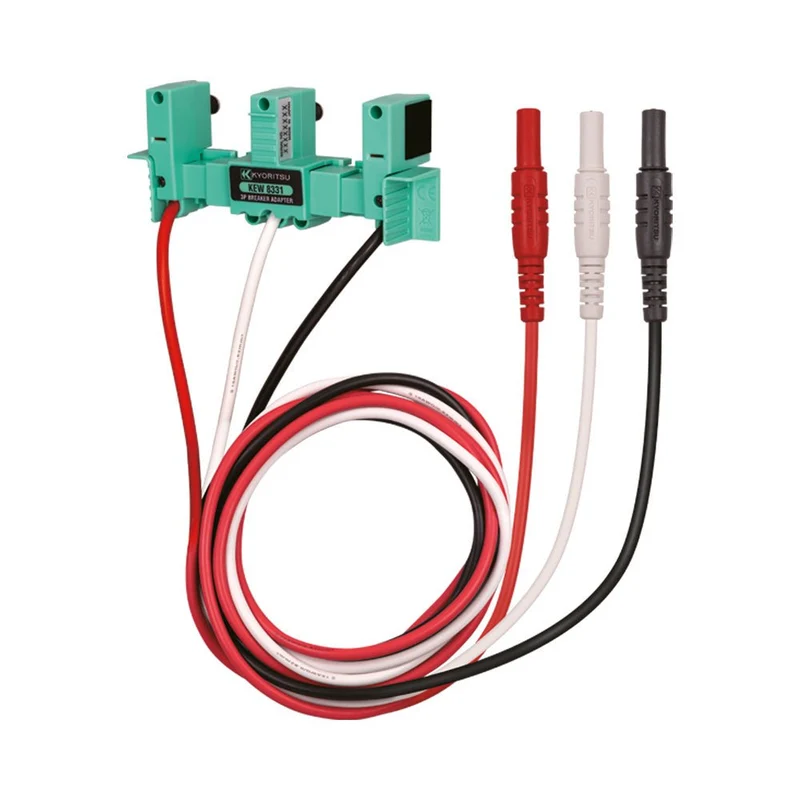

KYORITSU KEW 8331 3P Breaker Adapter

149,65 €104,50 €Oferta
Cantidad

Descripción

KYORITSU KEW 8331 3P Breaker Adapter

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • Helpful to prevent accidental detachment or short-circuit when connecting alligator clip to breaker.
  • Ideal for long period of measurement such as power measurements by trustful connection.
  • φ 4 Banana plug enables connection with versatile measuring instruments.

Specifications

Supported size of breaker *1 30 to 250 AF
Operating voltage range 0 to 600 Vrms AC [50/60 Hz]
Rated current 100 ｍA
Operating temperature and humidity range -10 to 50 °C, relative humidity 85% or less (no condensation)
Storage temperature and humidity range -20 to 60 °C, relative humidity 85% or less (no condensation)
Cable length 1.5 m
Applicable standards IEC 61010-031 CAT Ⅳ 300 V / CAT Ⅲ 600 V
Dimension 50(L)×117.5(W)×37(D) mm (excluding the cable part)
Weight Approx. 230 g
Accessories 8077 （Tip attachment） Instruction manual
Optional accessories 7315-BLK （Banana φ 4 female-female connector） 9096 （Carrying case）

Catalog reference: KYORITSU General Catalog 2026, page 81

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
