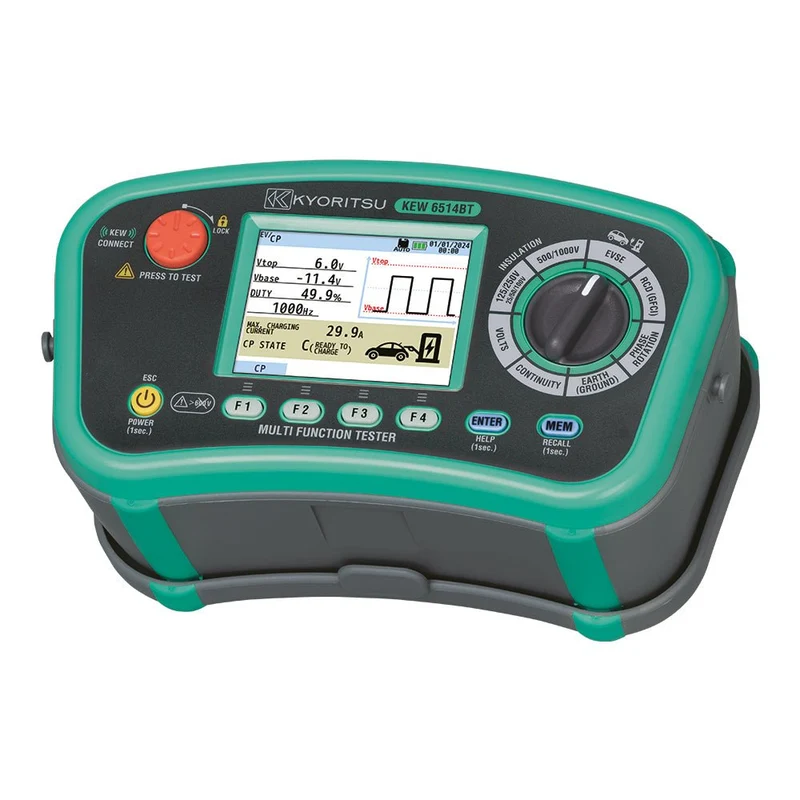

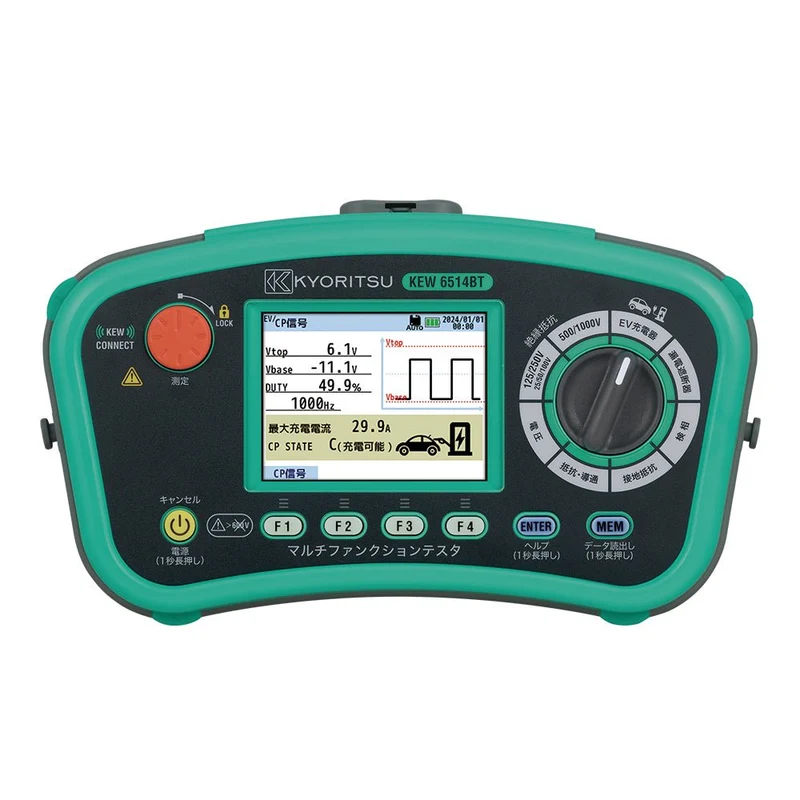

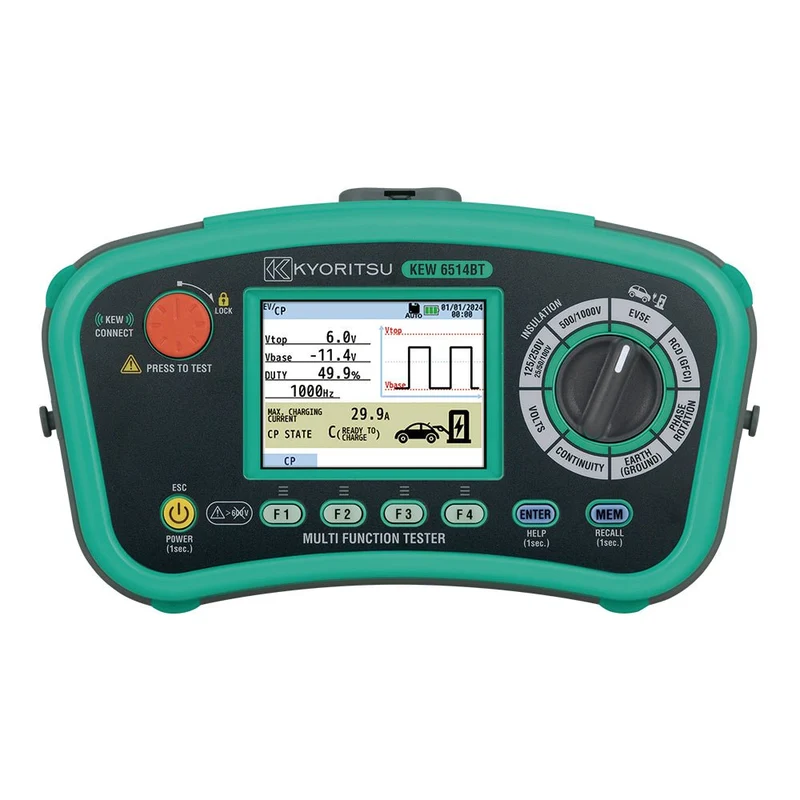

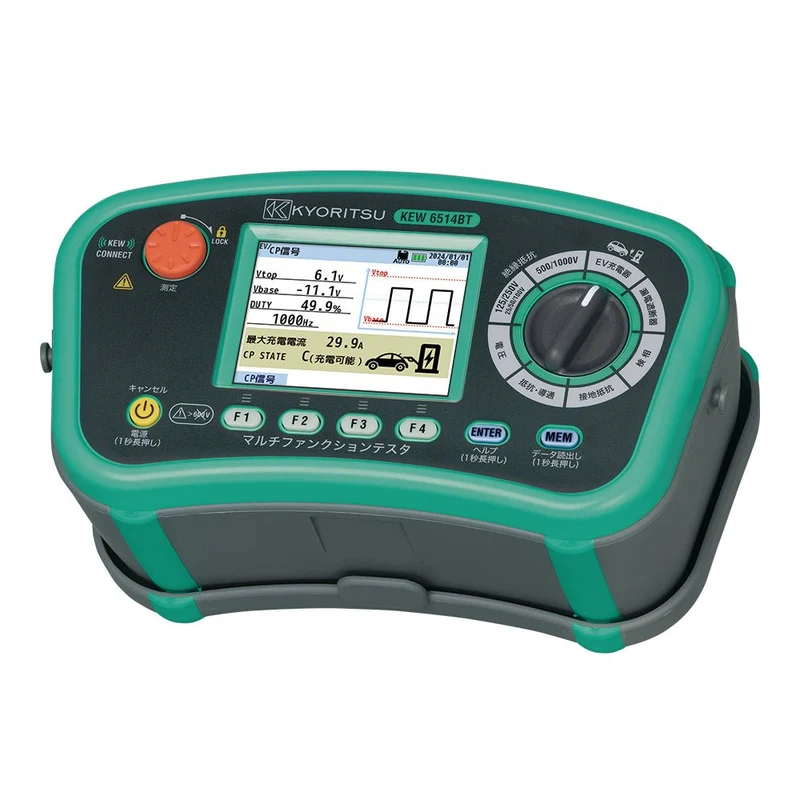

KYORITSU KEW 6514BT Multi Function Installation Tester

1213,63 €728,97 €Oferta
Cantidad

Descripción

KYORITSU KEW 6514BT Multi Function Installation Tester

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • Offers various tests for electrical installation Insulation / Earth / Continuity / Motor rotation / 2-Wire Loop / RCD / Phase rotation / Frequency / AC V / SPD(Varistor)
  • Auto memory
  • Color LCD Display
  • Tests dedicated for EVSE Waveform check of CP signal / Latch Locking / Programmable Auto test

Specifications

Insulation resistance SPD (Varistor)
Test voltage 25V | 50V | 100V | 125V | 250V | 500V | 1000V | 1000V max.
Range 2.000/ 20.00MΩ (Auto-ranging) | 2.000/20.00/200.0MΩ (Auto-ranging) | 2.000/20.00/ 200.0/1000MΩ (Auto-ranging) | 2.000/20.00/ 200.0/2000MΩ (Auto-ranging) | 0 to 1000V (goes up by 1V)
Accuracy － | ±5%rdg±5dgt
First effective measurement range 0.100 to 10.00MΩ | 0.100 to 25.0MΩ | 0.100 to 50.0MΩ | 0.100 to 100.0MΩ | 0.100 to 1000MΩ | －
Second effective measurement range 0.050 to 0.099MΩ | －
10.01 to 18.00MΩ 25.1 to 180.0MΩ | 50.1 to 180.0MΩ | 100.1 to 900MΩ | 1001 to 1800MΩ
Rated current 1.0 to 1.2ｍA | －
0.025 MΩ 0.05 MΩ | 0.1 MΩ | 0.125 MΩ | 0.25MΩ | 0.5MΩ | 1MΩ | －
Short circuit current 1.5mA max
Range 20.00/200.0/2000Ω (Auto-ranging)
Accuracy ±2%rdg±0.08Ω (20.00Ω) ±2%rdg±3dgt (200.0/2000Ω)
Rated voltage 85 to 260V (50/60Hz)
Impedance range 200.0/2000Ω
Accuracy ±3%rdg±10dgt
Measurement current L-PE:7mA
Range 20.00/200.0/2000Ω (Auto-ranging)
Open circuit voltage (DC) 7 to 14V
Measuring current 200ｍA or more (2Ω or less)
Accuracy ±2.0%rdg±8dgt
Rated voltage 85 to 440V (50/60Hz)
Function ×1/2, ×1, Ramp
RCD type AC(G)
Accuracy Trip cuurent | ×1/2 | -8 to -2%
×1 +2 to +8%
Ramp -4 to +4%
Trip time ×1/2 | ±1%rdg±2ms
Measuring range Vtop | 2.0 to 15.0V
Vbase -15.0 to -2.0V
Frequency 980 to 1020Hz
Duty 10.0 to 96.0%
Charging current 6.0 to 80.0A
Accuracy Vtop | ±4dgt
Frequency ±0.5%rdg±4dgt
Duty ±10dgt
Charging current Depends on the accuracy of the Duty cycle.
Range 300.0/600V (Auto-ranging)
Measuring range Volts | 2 to 600V
Frequency 45 to 65Hz
Accuracy Volts | ±2%rdg±4dgt
Frequency ±0.5%rdg±2dgt
Measuring range Phase rotation | 3 to 600V (45 to 65Hz)
Motor rotation 0.1 to 2V (1 to 10Hz)
Indication Clockwise direction: “1.2.3”and clockwise phase sequence icon Counterclockwise direction: “3.2.1”and counterclockwise phase sequence icon
Applicable srandards IEC 61010-1, IEC 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-2-034, IEC 61557-1,2,3,4,5,6,7,10, IEC 60529 (IP40)
Communication interface USB, Bluetooth ® 5.0
Power source LR6 (AA)(1.5V) × 8
Dimansion 136(L) × 235(W) × 114(D) mm
Weight Approx. 1300g (including batteries)
Accessories 7281 (Test leads with remote control switch) 7247 (Distribution board test lead) 7228A (Earth resistance test leads) 8017B (Extension prod long) 8041 (Auxiliary earth spikes [2spikes/1set]) 8923 (Fuse [0.5A/600V]×1 (included), 1 (spare) 9084 (Soft case) 9142 (carrying case) 9151 (Shoulder strap) 9199 (shoulder pad) Batteries, Instruction manual
Optional accessories 7272 (Precision measurement cord set) 8212-USB (USB adapter) 8259 (Adapter fpr measurement terminal) 8601 (EVSE ADAPTER) 8602 (EVSE ADAPTER)

Catalog reference: KYORITSU General Catalog 2026, page 62,63,65

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
