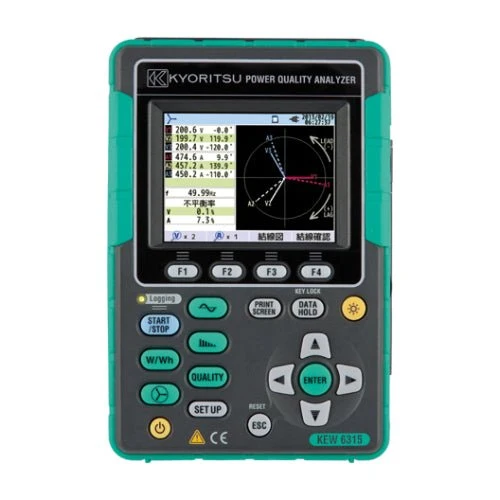

KYORITSU KEW 6315 Power Quality Analyzer AC100-240V

2686,53 €1467,14 €Oferta
Cantidad

Descripción

KYORITSU KEW 6315 Power Quality Analyzer AC100-240V

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Operating / rated voltage: AC100-240V

Key Features

  • Simultaneous Power & Power quality measurements
  • Helpful support functions
  • Measurement with high accuracy
  • Remote monitoring on PC and Android device
  • Various Clamp Current Sensors
  • Energy consumption check on site
  • IEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V, CAT Ⅱ 1000V

Specifications

Wiring connections 1P2W, 1P3W, 3P3W, 3P4W
Measurements and parameters Voltage, Current, Frequency, Active power, Reactive power, Apparent power,Active energy, Reactive energy, Apparent energy, Power factor (cos θ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption, Transients/Over voltage, Inrush current, Unbalance rate), Capacitance calculation for PF correction unit, Flicker
Accuracy 600.0V Range : (sine wave 40 to 70Hz) 10% to 150% against 100V or more of nominal V : Nominal V±0.5% Out of above range : ±0.2%rdg±0.2%f.s. 1000V Range : ±0.2%rdg±0.2%f.s.(sine wave 40 to 70Hz)
Allowable input 1 to 120% of each range (rms). 200% of each range (peak)
Display range 0.15 to 130% of each range
Crest factor 3 or less
Sampling speed of Voltage transient 24µs
Accuracy ±0.2%rdg±0.2%f.s. + accuracy of clamp sensor (sine wave, 40 to 70Hz)
Allowable input 1 to 110% of each range (rms). 200% of each range (peak)
Display range 0.15 to 130% of each range
Crest factor 3 or less
Influence of power factor ±1.0%rdg (reading at power factor 0.5 against power factor 1)
Frequency meter range 40 to 70Hz
Power supply (AC Line) AC100 to 240V / 50 to 60Hz / 7VA max
Power supply (DC battery) Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6 Battery life approx. 3h (LR6, Backlight OFF)
Internal memory FLASH memory (4MB)
PC card interface SD card (2GB)
Communication interface USB, Bluetooth ® 5.0
Display 320 × 240 (RGB) Pixel, 3.5inch color TFT display
Display update period 1 sec
Applicable standards IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V / CAT Ⅱ 1000V Pollution degree 2, IEC 61010-2-030, IEC 61010-031, IEC 61326, EN 50160 IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7
Temperature and humidity range 23±5ºC, less than 85% RH (without condensation)
Operating temperature and humidity range 0 to +45ºC, less than 85% RH (without condensation)
Storage temperature and humidity range -20 to +60ºC, less than 85% RH (without condensation)
Power supply (AC Line) AC100 to 240V / 50 to 60Hz / 7VA max
Power supply (DC battery) Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6 Battery life approx. 3h (LR6, Backlight OFF)
Dimension 175(L) × 120(W) × 68(D) mm
Weight Approx. 900g
Accessories 7141B (Voltage test lead set) 7170 (Power cord[EU]) or 7240 (Power cord[UK]) 7219 (USB cable) 8326-02 (SD card [2GB]) 9125 (Carrying case) Input terminal plate × 6, Quick manual, LR6× 6
Optional Accessories 8124 / 8125 / 8126 / 8127 / 8128 (Load current Clamp Sensor) 8130 / 8133 (*) / 8135 (*) (Flexible clamp sensor) 8146 / 8147 / 8148 (Leakage and Load current clamp sensor) 8312 (Power supply adapter) 9132 (Magnetic carrying case)

Catalog reference: KYORITSU General Catalog 2026, page 72,73

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
