Marca: KYORITSU

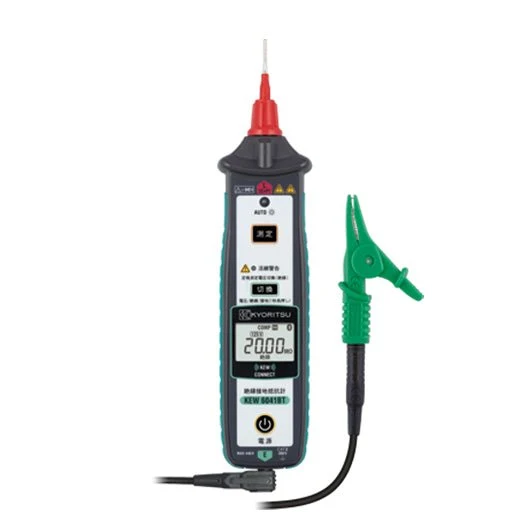

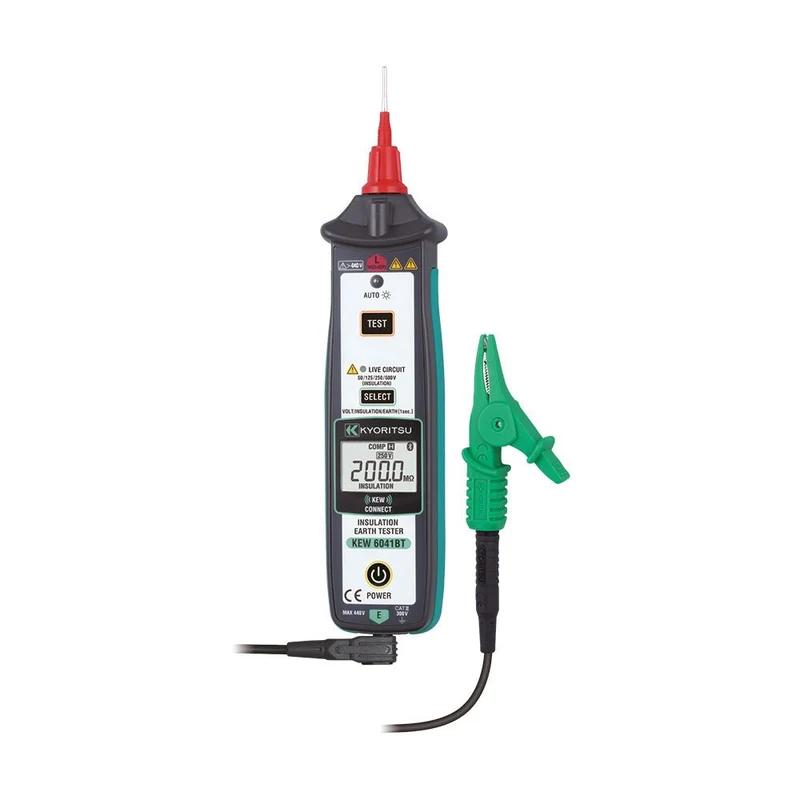

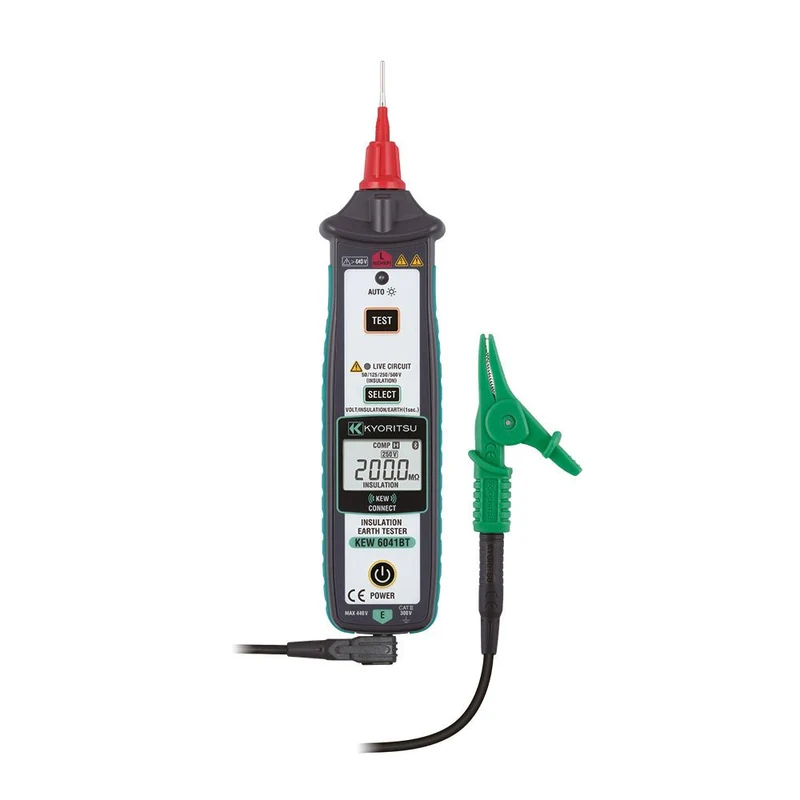

KYORITSU KEW 6041BT Insulation Earth Tester

342,84 €601,59 €43% OFF
Cantidad

Descripción

KYORITSU KEW 6041BT Insulation Earth Tester

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • Possible to measure line voltage up to 440 V
  • Small test current of 2 mA or less prevents unintentional RCD trip. (on EARTH function)
  • Live circuit warning (on INSULATION and EARTH functions)
  • Comparator function with audible warning
  • Setting customization via app
  • Enable/disable unnecessary functions or ranges. Any desired max displayed value and threshold value for comparator are selectable.
  • Replaceable 4-type of metal tips are available. Standard, long, and molded metal tips (accessories) L-shaped probe useful in high place measurement (optional accessory)
  • Bluetooth® communication Save the measured values in tablets or smartphones.

Specifications

Range 2.000/20.00/200.0 MΩ(Auto-ranging)
Mid-scale value 1 MΩ | 2 MΩ | 2 MΩ | 5 MΩ
Accuracy ±2%rdg±2dgt
Accuracy ±2%rdg±4dgt
Measuring range 10.01 to 200.0 MΩ | 25.1 to 200.0 MΩ | 50.1 to 200.0 MΩ | 100.1 to 200.0 MΩ
Accuracy ±5%rdg
Accuracy ±2%rdg±6dgt
Rated current 1.0 to 1.2 mA(at the following resistances)
0.050 MΩ 0.125 MΩ | 0.250 MΩ | 0.500 MΩ
Open-circuit voltage 100 to 120% of rated voltage
Short-circuit current 1.5 mA or less
Accuracy ±3%rdg±5dgt
Output current Approx. 1.6 mA(200 Ω range)/825 Hz, Approx. 0.7 mA(2000 Ω range)/825 Hz
Accuracy ±1%rdg±4dgt AC/±1%rdg±8dgt DC
Applicable standards IEC 61010-1, IEC 61010-2-030 CAT Ⅳ 150 V/CAT Ⅲ 300 V Pollution degree 2, IEC 61010-2-034, IEC 61557-1,2,5,10, IEC 60529(IP40), IEC 61326-1, IEC 61326-2-2, IEC 61010-031
Communication interface Bluetooth ® 5.0
Operating temperature and humidity range -10 to 50 °C, relative humidity 85% or less(no condensation)
Storage temperature and humidity range -20 to 60 °C, relative humidity 75% or less(no condensation)
Power source LR6(AA)(1.5 V) x 2
Dimension 232(L) x 51(W) x 42(D) mm(including the tip metal parts)
Weight Approx. 230 g(including batteries)
Accessories 7248 (Test lead with alligator clip and flat test probe) 8072A (CAT Ⅱ standard prod) 8017B (Extension prod long) 8253 (CAT Ⅲ standard prod) 9161 (Carrying case) Batteries, Instruction manual
Optional accessories 7296 (L-shaped probe set) 9198 (Carrying case for L-shaped probe)

Catalog reference: KYORITSU General Catalog 2026, page 58,59

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
