Marca: KYORITSU

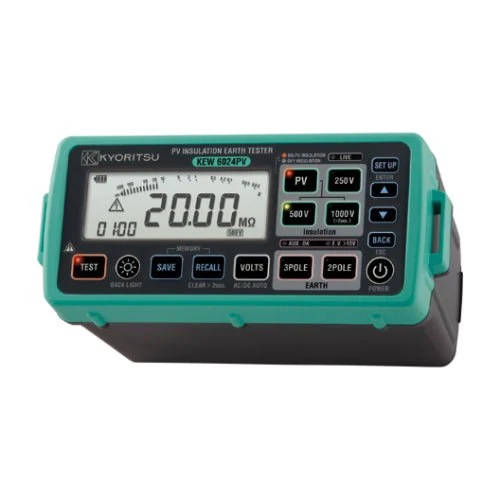

KYORITSU KEW 6024PV PV Insulation Earth Tester

361,57 €710,96 €49% OFF
Cantidad

Descripción

KYORITSU KEW 6024PV PV Insulation Earth Tester

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • Accurate measuring of Insulation resistance even if the PhotoVoltaic (PV) arrays are generating power
  • No need to short circuit the PV arrays or test at night to measure the Insulation resistance
  • Earth resistance measurements with Voltamperometric method at 3 and 2 pole
  • Waterproof design, ideally suited to work in bad weather condition
  • Memory function up to 1000 data
  • Luminescence buttons and large Backlight display
  • Elapsed time, after starting a measurement, is displayed with the measured values
  • Compact and light weight
  • Test probe with a remote control switch is supplied as standard accessory
  • Auto-discharge with voltage display
  • Special analysis software "KEW Report" is available

Specifications

Range(Auto-ranging) 20.00/200.0/2000MΩ
Measuring range 0.00 to 1.50MΩ 200.1 to 2000MΩ | 1.51 to 200.0MΩ | 0.00 to 1.50MΩ 1001 to 2000MΩ | 1.51 to 1000MΩ
Open circuit voltage 1 to 1.2times
Short circuit current 1.5mA or less
Range(Auto-ranging) 20.00/200.0/2000MΩ
Rated current 1.0 to 1.2mA
0.25MΩ 0.5MΩ | 1MΩ
First effective measuring range 1.51 to 100.0MΩ | 1.51 to 200.0MΩ | 1.51 to 1000MΩ
Accuracy ±1.5%rdg±5dgt
Second effective measuring range 1.20 to 1.50MΩ 100.1 to 2000MΩ | 1.20 to 1.50MΩ 200.1 to 2000MΩ | 1.20 to 1.50MΩ 1001 to 2000MΩ
Open circuit voltage 1 to 1.2times
Short circuit current 1.5mA or less
Accuracy ±3.0%rdg±0.1Ω (20Ω range) ±3.0%rdg±3dgt (200/2000Ω range)
Accuracy ±1.0%rdg±4dgt
Power source LR6(AA)(1.5V) × 6
Dimension 84(L) × 184(W) × 133(D)mm
Weight Approx. 900g (including batteries)
Accessories 7196B (Test leads with remote control switch) 7244A (Test lead with alligator clip) 8017 (Extension prod long) 8072 (CATⅡStandard prod) 8212-USB (USB adapter) 9156A (Soft case with shoulder strap) LR6(AA) × 6, Instruction manual
Optional Accessories 7243A (L-shaped probe) 7245A (Precision measurement cord set) 8016 (Hook type prod)

Catalog reference: KYORITSU General Catalog 2026, page 60,61

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
