Marca: KYORITSU

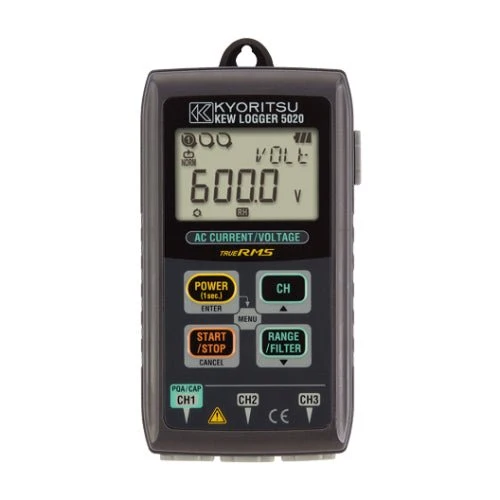

KYORITSU KEW 5020 Current & Voltage Logger

515,08 €354,80 €Oferta
Cantidad

Descripción

KYORITSU KEW 5020 Current & Voltage Logger

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • Power Quality analysis
  • Large capacity for storing 60,000 data points
  • Lowpass Filter will filter out the harmonics
  • LED flickers when the preset current/voltage value is exceeded
  • CALL: Confirmation of recorded data
  • Selection of One-time mode or Endless mode
  • Non Volatile Memory
  • Battery power indicator
  • User-friendly PC software "KEW LOG Soft2" is available
  • Continuous measuring time: Approx. 10 days (Alkaline Battery)

Specifications

Range RMS Accuracy
100.0mA ±2.0%rdg±0.9%f.s.+ Accuracy of Sensor
Other ranges ±1.5%rdg±0.7%f.s.+ Accuracy of Sensor
Crest Factor 2.5 or less: RMS accuracy (sine) + 2%rdg + 1%f.s.
Range Accuracy
100.0mA ±3.5%rdg±2.2%f.s.+ Accuracy of Sensor
Other ranges ±3.0%rdg±2.0%f.s.+ Accuracy of Sensor
Range Accuracy
100.0mA ±3.0%rdg±1.7%f.s.+ Accuracy of Sensor
Other ranges ±2.5%rdg±1.5%f.s.+ Accuracy of Sensor
Recording mode Normal, Trigger, Capture, Power Quality Analysis
Operating system Successive Approximation (CH1 single synchronized sampling)
Rated max. working voltage AC 9.9Vrms, 14V peak value
Number of input channel 3ch
Measuring method True RMS
RMS measuring interval Approx. 100ms
Sampling interval Normal/Trigger mode : Approx. 1.65ms/CH Capture mode : Approx. 0.55ms (waveform: at every 1.1ms)
Current range 8146 (30A type) : 100.0/1000mA/10.00/30.0A 8147 (70A type) : 100.0/1000mA/10.00/70.0A 8148 (100A type) : 100.0/1000mA/10.00/100.0A 8121 (100A type) : 10.00/100.0A 8122 (500A type) : 50.00/500.0A 8123 (1000A type) : 100.0/1000A 8128/8135 (5A type) : 5.000A/(50.00A) 8127 (100A type) : 10.00A/100.0A 8126 (200A type) : 20.00A/200.0A 8125 (500A type) : 50.00A/500.0A 8124 (1000A type) : 100.0A/1000A 8130 (1000A type) : 100.0/1000A
Low battery warning Battery mark display (in 4 levels)
Over-range indication "OL" mark is displayed when exceeding the measuring range
Auto power off Turns off the instrument automatically if there is no switch operation for about 3 min. (This function doesn’t work during a recording.)
Possible measurement time Approx. 10 days (with alkaline LR6 batteries)
Applicable standards IEC 61010-1:2001 CAT Ⅲ 300V Pollution degree2, IEC 61326 (EMC)
Dimension 111(L)×60(W)×42(D)mm
Weight Approx. 265g
Accessories 7148 (USB cable) 9118 (Carrying case) LR6×4pcs Instruction manual Quick manual USB Notice sheet
Optional Accessories 8146 / 8147 / 8148 (Leakage & Load current Clamp Sensor) 8121 / 8122 / 8123 (Load current Clamp Sensor) 8124 / 8125 (*1) / 8126 (*2) / 8127 (*3) / 8128 (Load current Clamp Sensor) 8130 (*4) / 8135 (Flexible Clamp Sensor) 7185 (Extension cable for sensor) 8309 (Voltage sensor) 8320 (AC Adapter) 9135 (Carrying bag)

Catalog reference: KYORITSU General Catalog 2026, page 66,67

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
