Marca: KYORITSU

KYORITSU KEW 4105DLBT Earth Tester

520,06 €299,19 €Oferta
Cantidad

Descripción

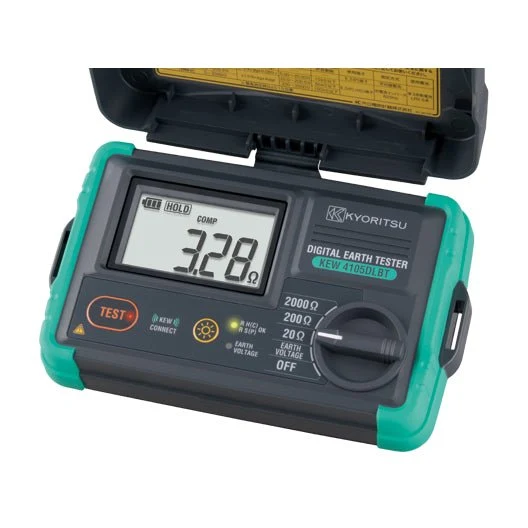

KYORITSU KEW 4105DLBT Earth Tester

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • 3-Pole and 2-Pole Earth Resistance measurement (0.01 to 2000Ω)
  • Waterproof design (IP67)
  • Built-in Bluetooth® enables data transfer
  • Noise rejection up to 25V rms allows accurate testing in noisy environments
  • Rotary Switch makes the user interface very intuitive
  • Large LCD Display with Backlight
  • LED to monitor correct / non correct auxiliary earth spike resistance
  • Earth Voltage Measurement (AC/DC 0 to 300V)
  • CAT Ⅳ 100V *Please check here for the hard case model.

Specifications

Earth resistance measurement 20Ω | 200Ω | 2000Ω
Display range 0.00 to 20.99 Ω | 0.0 to 209.9 Ω | 0 to 2099 Ω
Accuracy *1 ±1.5%rdg±0.08 Ω *2 | ±1.5%rdg±4dgt
Auxiliary earth resistance *3 <10kΩ | <50kΩ | <100kΩ
Comparator reference value 10Ω | 100Ω | 500Ω
Display range 0.0 to 314.9 V 0.0 to ±314.9 V
Accuracy ±1%rdg±4dgt
Applicable Standards IEC 61010-1 CAT Ⅳ 100V / CAT Ⅲ 150V / CAT Ⅱ 300V Pollution degree 3 IEC 61010-2-030, IEC 61010-031, IEC 61557-1, 5 IEC 60529 (IP67), IEC 61326-1, 2-2
Communication interface Bluetooth ® 5.0
Power source LR6(AA)(1.5V) × 6
Dimension 121(L) × 188(W) × 59(D) mm (including case lid)
Weight Approx. 690g (including batteries and case lid)

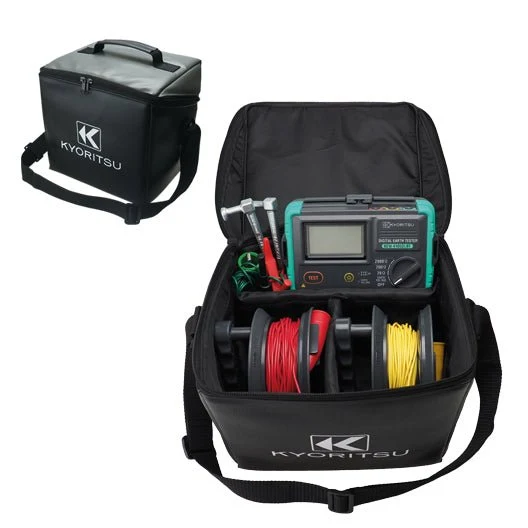

Accessories 7127B (Simplified measurement probe) 8041 (Auxiliary earth spikes [2spikes/1set]) 9121 (Shoulder strap) 7267 (Cable reel for Earth resistance tester [red:20m]) 7268 (Cable reel for Earth resistance tester [yellow:10m]) 7271 (Earth resistance test lead [green:5m]) 9190 (Carrying case) LR6(AA) × 6, Instruction manual
Optional Accessories 7266 (Earth resistance test leads [red:20m, yellow:10m, green:5m/1set]) 7269 (Earth resistance test leads [red:20m]) 7270 Earth resistance test leads [yellow:10m]) 7272 (Precision measurement Cord set) 8259 (Adapter for measurement terminal) 9197 (Carrying case[Hard])

Catalog reference: KYORITSU General Catalog 2026, page 51

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
