Marca: KYORITSU

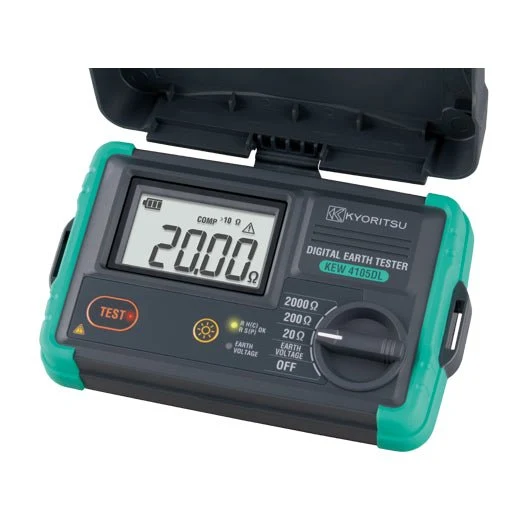

KYORITSU KEW 4105DL-H Earth Tester

538,70 €367,13 €Oferta
Cantidad

Descripción

KYORITSU KEW 4105DL-H Earth Tester

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • 3-Pole and 2-Pole Earth Resistance measurement (0.01 to 2000Ω)
  • Waterproof design (IP67)
  • Rotary Switch makes the user interface very intuitive
  • Large LCD Display with Backlight
  • LED to monitor correct / non correct auxiliary earth spike resistance
  • Earth Voltage Measurement (AC/DC 0 to 300V)
  • CAT Ⅳ 100V *Please check here for the cable real set model.

Specifications

Earth resistance measurement 20Ω | 200Ω | 2000Ω
Display range 0.00 to 20.99 Ω | 0.0 to 209.9 Ω | 0 to 2099 Ω
Accuracy*1 ±1.5%rdg±0.08 Ω*2 ±1.5%rdg±4dgt
Auxiliary earth resistance*3 <10kΩ | <50kΩ | <100kΩ
Comparator reference value 10Ω | 100Ω | 500Ω
Display range 0.0 to 314.9 V 0.0 to ±314.9 V
Accuracy ±1%rdg±4dgt
Applicable Standards IEC 61010-1 CAT Ⅳ 100V / CAT Ⅲ 150V / CAT Ⅱ 300V Pollution degree 3 IEC 61010-2-030, IEC 61010-031, IEC 61557-1, 5 IEC 60529 (IP67), IEC 61326-1, 2-2
Power source LR6(AA)(1.5V) × 6
Dimension 121(L) × 188(W) × 59(D) mm (including case lid)
Weight Approx. 690g (including batteries and case lid)

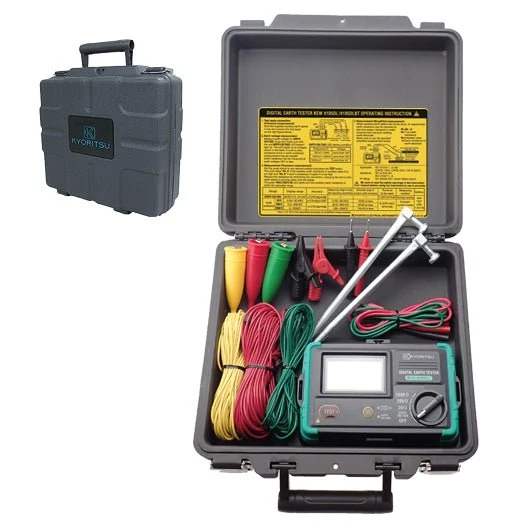

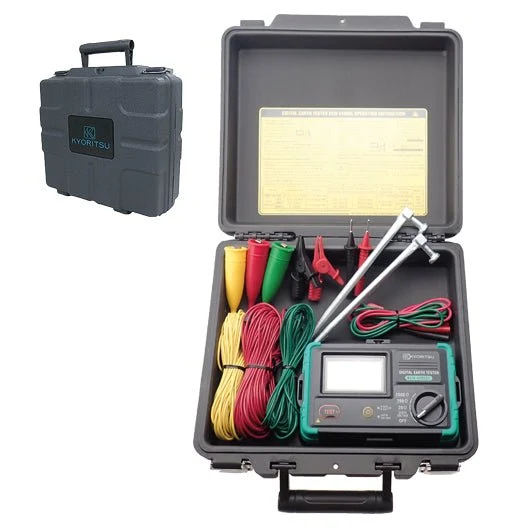

Accessories 7127B (Simplified measurement probe) 7266 (Earth resistance test leads [red:20m, yellow:10m, green:5m/1set]) 8041 (Auxiliary earth spikes [2spikes/1set]) 9121 (Shoulder strap) 9191 (Hard case) LR6(AA) × 6, Instruction manual
Optional Accessories 7267 (Cable reel for Earth resistance tester [red:20m]) 7268 (Cable reel for Earth resistance tester [yellow:10m]) 7271 (Earth resistance test lead [green:5m]) 7272 (Precision measurement cord set) 8259 (Adapter for measurement terminal) 9190 (Carrying case) 9192 (Carrying case for cord reels) 7269 (Earth resistance test lead (Red 20m)) 7270 (Earth resistance test lead (Yellow 10m))

Catalog reference: KYORITSU General Catalog 2026, page 50

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
