Marca: KYORITSU

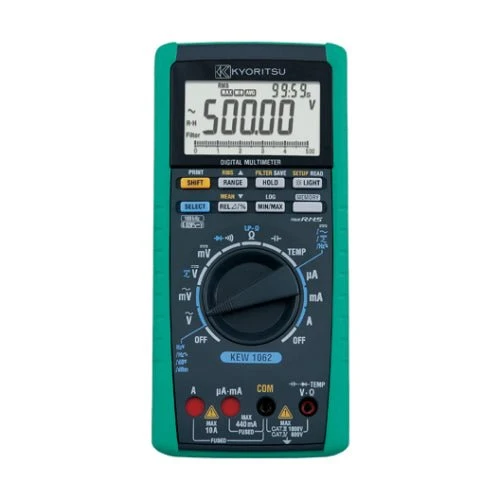

KYORITSU KEW 1062 Digital Multimeter

672,32 €368,52 €Oferta
Cantidad

Descripción

KYORITSU KEW 1062 Digital Multimeter

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • 0.02% basic DC accuracy
  • Large display with 50,000 counts
  • Dual display for double indication for AC and DC, V and Hz, etc.
  • True-RMS Measurements AC and AC+DC
  • Wide AC Frequency bandwidth from 10Hz to 100kHz
  • True-RMS or MEAN value detection mode can be selected
  • Fast Peak Hold response time of 250µs
  • Low-pass filter for motor drive measurements
  • Low Power Ω for resistance measurements on sensible electronic circuits by a low and safe test current
  • User calibration function
  • Complies with IEC 61010-1 CAT IV 600V, CAT III 1000V
  • Terminal shutter to prevent incorrect test leads' insertion in current terminals

Specifications

Detection mode MEAN/True RMS (switch)
DC V 50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V (Input impedance: Approx. 100MΩ [50/500/2400mV], 10MΩ [5/50/500/1000V]) ±0.02%rdg±2dgt (Basic accuracy)
AC V [True RMS] 50.000/500.00mV/5.0000/50.000/500.00/1000.0V (Input impedance: 11MΩ<50pF [50/500mV/5V], 10MΩ<50pF [50/500/1000V]) ±0.4%rdg±30dgt (Basic accuracy)
AC V [MEAN] 50.000/500.00mV/ 5.0000/50.000/500.00/1000.0V (Input impedance:11MΩ<50pF [50/500mV/5V],10MΩ<50pF [50/500/1000V]) ±1%rdg±30dgt (Basic accuracy)
DCV+ACV 5.0000/50.000/500.00/1000.0V (Input impedance: 11MΩ<50pF [5V], 10MΩ<50pF [50/500/1000V]) ±0.5%rdg±10dgt (Basic accuracy)
DC A 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±0.2%rdg±5dgt (Basic accuracy)
AC A [True RMS] 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±0.75%rdg±20dgt (Basic accuracy)
AC A [MEAN] 500.00/5000.0µA/50.000/500.00mA/ 5.0000/10.000A ±1.5%rdg±20dgt (Basic accuracy)
DCA+ACA 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±1%rdg±10dgt (Basic accuracy)
Ω 500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ ±0.05%rdg±2dgt (Basic accuracy)
LowPower-Ω 5.000/50.00/500.0kΩ/5.000MΩ ±0.2%rdg±3dgt (Basic accuracy)
Continuity buzzer 500.0Ω (The buzzer turns on at resistances lower than 100±50Ω)
Diode test 2.4000V ±1%rdg±2dgt Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current)
Capacitance 5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF ±1%rdg±5dgt (Basic accuracy)
Frequency 2.000 to 9.999/9.00 to 99.99/90.0 to 999.9Hz/0.900 to 9.999/9.00 to 99.99kHz ±0.02%rdg±1dgt (Basic accuracy)
DUTY 10 to 90% ±1%rdg
Temperature -200 to 1372ºC ±1%rdg±1.5ºC -328 to 2501.6ºF ±1%rdg±2.0ºF (with the use of K-type Temperature probe)
Measurement functions DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test, LowPower-Ω
Other functions Data Hold (D/H), Auto Hold (A/H), Peak Hold (P/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN) Average value (AVG), Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight
Applicable standards IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61326-1 (EMC)
Power source R6/LR6 (1.5V)×4 (Auto power off: approx. 20 minutes)
Dimension 192(L)×90(W)×49(D) mm
Weight Approx. 570g (including batteries and blank cover)
Accessories 7220A (Test leads) 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included) Batteries Instruction manual B lank cover
Optional accessories 7234 (Alligator clip) 8241 (USB Communication set) 8115 (AC/DC Clamp Sensor) 8121 (Load current Clamp Sensor) 8122 (Load current Clamp Sensor) 8123 (Load current Clamp Sensor) 8146 (Leakage & Load current Clamp Sensor) 8147 (Leakage & Load current Clamp Sensor) 8148 (Leakage & Load current Clamp Sensor) 7146 (Banana Ø4 adjuster plug) 8405 (Temperature probe) 8407 (Temperature probe) 8408 (Temperature probe) 9154 (Carrying case)

Catalog reference: KYORITSU General Catalog 2026, page 22,23

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
