Marca: KYORITSU

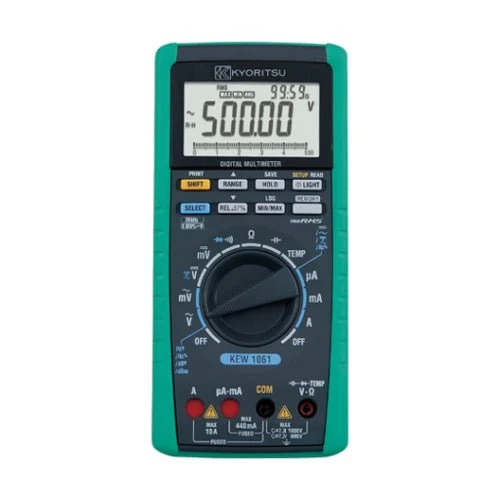

KYORITSU KEW 1061 Digital Multimeter

628,81 €330,22 €Oferta
Cantidad

Descripción

KYORITSU KEW 1061 Digital Multimeter

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • 0.02% basic DC accuracy
  • Large display with 50,000 counts
  • Dual display for double indication for AC and DC, V and Hz, etc.
  • True RMS Measurements AC and AC+DC
  • Fast Peak Hold response time of 250µs
  • Complies with IEC 61010-1 CAT IV 600V, CAT III 1000V
  • Terminal shutter to prevent incorrect test leads' insertion in current terminals
  • Very wide operating temperature range from -20 to 55ºC
  • Large data internal memory KEW 1061: 1,000 data (logging), 100 data (manual)
  • Download data and Live Monitoring on a PC via the USB interface (Option for USB Communication set) * MAX 32,767 data can be transferred.

Specifications

Detection mode True RMS
DC V 50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V (Input impedance: Approx. 100MΩ [50/500/2400mV], 10MΩ [5/50/500/1000V]) ±0.02%rdg±2dgt (Basic accuracy)
AC V 500.00mV/5.0000/50.000/500.00/1000.0V (Input impedance: 11MΩ<50pF [50/500mV/5V], 10MΩ<50pF [50/500/1000V]) ±0.7%rdg±30dgt (Basic accuracy)
DCV+ACV 5.0000/50.000/500.00/1000.0V (Input impedance: 11MΩ<50pF [5V], 10MΩ<50pF [50/500/1000V]) ±1%rdg±10dgt (Basic accuracy)
DC A 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±0.2%rdg±5dgt (Basic accuracy)
AC A 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±1%rdg±20dgt (Basic accuracy)
DCA+ACA 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±1.5%rdg±10dgt (Basic accuracy)
Ω 500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ ±0.1%rdg±2dgt (Basic accuracy)
Continuity buzzer 500.0Ω (The buzzer turns on at resistances lower than 100±50Ω)
Diode test 2.4000V ±1%rdg±2dgt Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current)
Capacitance 5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF ±1%rdg±5dgt (Basic accuracy)
Frequency 2.000 to 9.999/9.00 to 99.99/90.0 to 999.9Hz/0.900 to 9.999/9.00 to 99.99kHz ±0.02%rdg±1dgt (Basic accuracy)
DUTY 10 to 90% ±1%rdg
Temperature -200 to 1372ºC ±1%rdg±1.5ºC -328 to 2501.6ºF ±1%rdg±2.0ºF (with the use of K-type Temperature probe)
Measurement functions DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test
Other functions Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN), Average value (AVG) Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight
Applicable standards IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61326-1 (EMC)
Power source R6/LR6 (1.5V)×4 (Auto power off: approx. 20 minutes)
Dimension 192(L)×90(W)×49(D) mm
Weight Approx. 570g (including batteries and blank cover)
Accessories 7220A (Test leads) 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included) Batteries Instruction manual B lank cover
Optional accessories 7234 (Alligator clip) 8241 (USB Communication set) 8115 (AC/DC Clamp Sensor) 8121 (Load current Clamp Sensor) 8122 (Load current Clamp Sensor) 8123 (Load current Clamp Sensor) 8146 (Leakage & Load current Clamp Sensor) 8147 (Leakage & Load current Clamp Sensor) 8148 (Leakage & Load current Clamp Sensor) 7146 (Banana Ø4 adjuster plug) 8405 (Temperature probe) 8407 (Temperature probe) 8408 (Temperature probe) 9154 (Carrying case)

Catalog reference: KYORITSU General Catalog 2026, page 22,23

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
