Marca: KYORITSU

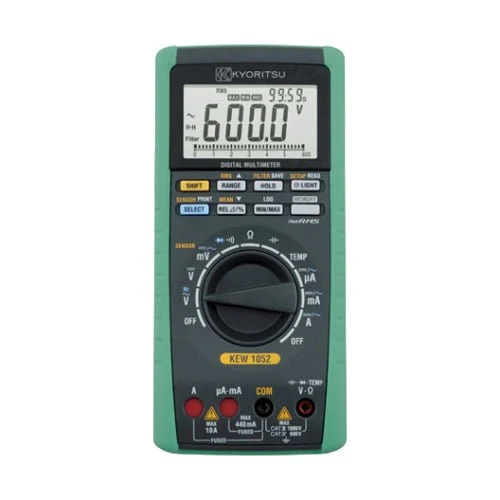

KYORITSU KEW 1052 Digital Multimeter

379,60 €264,34 €Oferta
Cantidad

Descripción

KYORITSU KEW 1052 Digital Multimeter

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • 0.09% basic DC accuracy
  • Large display with 6,000 counts
  • True RMS Measurements
  • True RMS or MEAN value detection mode can be selected
  • Low-pass filter for motor drive measurements
  • User calibration function
  • Complies with IEC 61010-1 CAT IV 600V , CAT III 1000V
  • Terminal shutter to prevent incorrect test leads' insertion in current terminals
  • Very wide operating temperature range from -10 to 55ºC
  • Large data internal memory 1,600 data (logging), 100 data (manual)
  • Download data and Live Monitoring on a PC via the USB interface (Option for USB Communication set) *MAX 32,767 data can be transferred.

Specifications

Detection mode MEAN/True RMS (switch)
DC V 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V]) ±0.09%rdg±2dgt (Basic accuracy)
AC V [True RMS] 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy)
AC V [MEAN] 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy)
DC A 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.2%rdg±2dgt (Basic accuracy)
AC A [True RMS] 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.75%rdg±5dgt (Basic accuracy)
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±0.4%rdg±1dgt (Basic accuracy)
Continuity buzzer 600.0Ω (The buzzer turns on at resistances lower than 50±30Ω)
Diode test 2.000V ±1%rdg±2dgt Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current)
Capacitance 10.00/100.0nF/1.000/10.00/100.0/1000µF ±2%rdg±5dgt (Basic accuracy)
Frequency 10.00 to 99.99/90.0 to 999.9Hz/0.900 to 9.999/9.00 to 99.99kHz ±0.02%rdg±1dgt (Basic accuracy)
Temperature -50 to 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe)
Other functions Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) * Zero Adjustment (Capacitor, Resistance), Save to Memory *, LCD backlight
Applicable standards IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61326-1 (EMC)
Power source R6/LR6 (1.5V)×4 (Auto power off: Approx. 20 minutes)
Dimension 192(L)×90(W)×49(D) mm
Weight Approx. 570g (including batteries and blank cover)
Accessories 7220A (Test leads) 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included) Batteries Instruction manual Blank cover
Optional accessories 7234 (Alligator clip) 8241 (USB Communication set) 8115 (AC/DC Clamp Sensor) 8121 (Load current Clamp Sensor) 8122 (Load current Clamp Sensor) 8123 (Load current Clamp Sensor) 8146 (Leakage & Load current Clamp Sensor) 8147 (Leakage & Load current Clamp Sensor) 8148 (Leakage & Load current Clamp Sensor) 7146 (Banana Ø4 adjuster plug) 8405 (Temperature probe) 8407 (Temperature probe) 8408 (Temperature probe) 9154 (Carrying case)

Catalog reference: KYORITSU General Catalog 2026, page 22,23

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
