Marca: KYORITSU

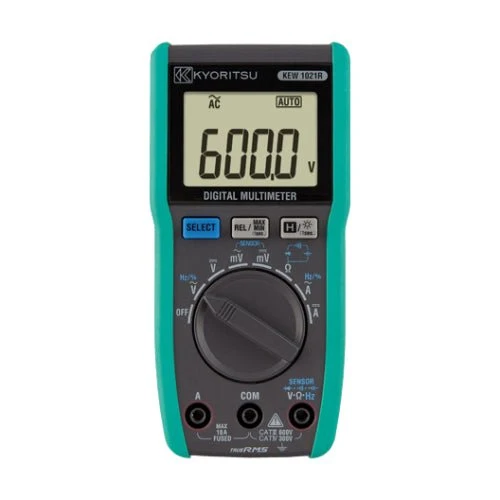

KYORITSU KEW 1021R Digital Multimeter

100,00 €65,09 €Oferta
Cantidad

Descripción

KYORITSU KEW 1021R Digital Multimeter

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • Accurate reading with True RMS
  • Large display with 6000 counts and Backlight
  • MIN/MAX function
  • Rugged and reliable
  • Enhanced current measuring function using an external clamp sensor
  • Sensor mode (with clamp sensor)
  • Ergonomic design
  • Safety Standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V

Specifications

DC V 6.000/60.00/600.0V (Auto-ranging) ±0.5%rdg ±3dgt
DC mV 600.0mV ±1.5%rdg ±3dgt
DC Clamp Sensor 60.00/200.0A (Auto-ranging) ±1.5%rdg ±3dgt + Sensor accuracy
AC V 6.000/60.00/600.0V (Auto-ranging) ±1.0%rdg ±3dgt [40 to 500Hz]
AC mV 600.0mV ±2.0%rdg ±3dgt [40 to 500Hz]
AC Clamp Sensor 60.00/200.0A (Auto-ranging) ±2.0%rdg ±3dgt + Sensor accuracy [40 to 500Hz]
DC A 6.000/10.00A (Auto-ranging) ±1.5%rdg ±3dgt
AC A 6.000/10.00A (Auto-ranging) ±1.5%rdg ±3dgt[45 to 500Hz]
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (Auto-ranging) ±0.5%rdg ±4dgt (600Ω) ±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ) ±1.5%rdg ±3dgt (40MΩ)
Continuity buzzer 600Ω (Buzzer sounds below 90Ω)
Diode test Open circuit voltage: < 3.0V
Capacitance 60.00/600.0nF/6.000/60.00/600.0/1000µF ±2.0%rdg ±5dgt (60/600nF) ±5.0%rdg ±5dgt (6/60/600/1000µF)
Frequency ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt
DUTY 10.0 to 90.0% ±1.0%rdg ±3dgt [50/60Hz]
Applicable standards IEC 61010-1 CAT IV 300V / CAT III 600V IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS)
Power source R03 (1.5V) × 2
Dimension 155(L) × 75(W) × 40(D)mm
Weight Approx. 250g (including batteries)
Accessories Wing-type holder Flat-type holder 7066A (Test leads) 8919 (Ceramic fuse [10A/600V]) × 1 (included) 9097 (Carrying case) R03 × 2 Instruction manual
Optional accessories 7234 (Alligator clip) 8161 (AC clamp adaptor) 8115 (AC/DC clamp sensor) 9189 (Magnet hanger strap)

Catalog reference: KYORITSU General Catalog 2026, page 20

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
