Marca: KYORITSU

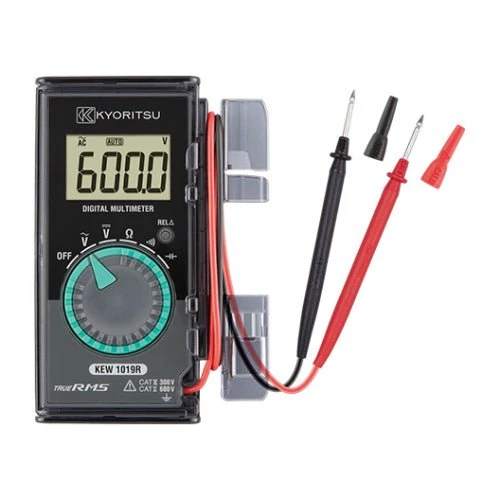

KYORITSU KEW 1019R Digital Multimeter

57,11 €29,31 €Oferta
Cantidad

Descripción

KYORITSU KEW 1019R Digital Multimeter

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • True RMS Measurements
  • Sturdy test leads
  • Smart structure hard case
  • DCV, ACV, Ω, Capacitance Measurement
  • Complies with IEC 61010-1 CAT Ⅲ 300V / CAT Ⅱ 600V
  • Large display
  • Simple range composition

Specifications

DC V 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±0.8%rdg ±5dgt (600.0mV/6.000/60.00V) ±1.0%rdg ±5dgt (600.0V)
AC V 6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±1.3%rdg±5dgt (6.000/60.00V) (50/60Hz) ±1.7%rdg±5dgt (6.000/60.00V) (45 to 500Hz) ±1.6%rdg±5dgt (600.0V) (50/60Hz) ±2.0%rdg±5dgt (600.0V) (45 to 500Hz)
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ ±1.0%rdg±5dgt (600.0Ω/6.000/60.00/600.0kΩ/6.000MΩ) ±2.5%rdg±5dgt (40.00MΩ)
Continuity buzzer 600.0Ω (Buzzer threshold value 60Ω or less)
Capacitance 6.000/60.00/600.0nF/6.000/60.00/600.0µF ±3.5%rdg±50dgt (6.000nF) ±3.5%rdg±10dgt (60.00nF) ±3.5%rdg±5dgt (600.0nF/6.000/60.00µF) ±4.5%rdg±5dgt (600.0µF)
Applicable standards IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2 IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2
Power source CR2032 (3V) × 1 Approx. 120 hours, Auto power save: Approx: 15 minutes
Dimension 126(L) × 85(W) × 18(D)mm
Weight Approx. 135g (including hard case, battery)
Accessories 9188 (Hard case) CR2032 × 1 Instruction manual

Catalog reference: KYORITSU General Catalog 2026, page 18

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
