Marca: KYORITSU

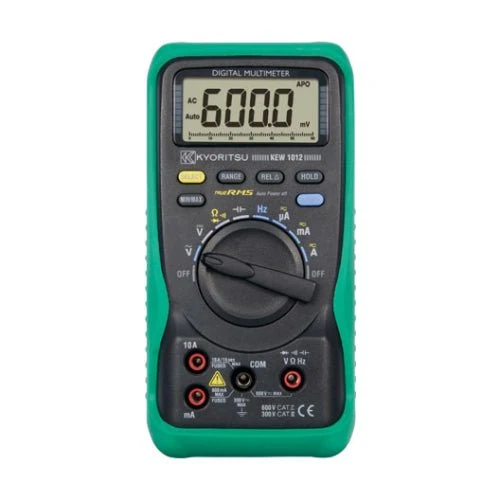

KYORITSU KEW 1012 Digital Multimeter

124,80 €87,09 €Oferta
Cantidad

Descripción

KYORITSU KEW 1012 Digital Multimeter

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

  • 6040 counts with Bar Graph display
  • MIN/MAX function enables to record min & max value
  • REL(relative value) function
  • True RMS can measure and indicate distorted waveforms
  • DUTY measurement function

Specifications

DC V 600.0mV/6.000/60.00/600.0/600V (Input Impedance: 10MΩ, 100MΩ only 600mV) ±0.5%±2dgt (600.0mV/6.000/60.00/600.0V) ±0.8%±3dgt (600V)
AC V 6.000/60.00/600.0/600V (Input Impedance: 10MΩ) ±1.5%±5dgt (6.000V) ±1.2%±3dgt (60.00/600.0V) ±1.5%±5dgt (600V)
DC A 600/6000µA/60/600mA/6/10A ±1.2%±3dgt (600/6000µA/60/600mA) ±2.0%±5dgt (6/10A)
AC A 600/6000µA/60/600mA/6/10A ±1.5%±4dgt (600/6000µA/60/600mA) ±2.2%±5dgt (6/10A)
Ω 600Ω/6/60/600kΩ/6/60MΩ ±1.0%±2dgt (600Ω/6/60/600kΩ/6MΩ) ±2.0%±3dgt (60MΩ)
Continuity buzzer 0 to 600Ω (Buzzer sounds below 100Ω)
Diode test 2.8V open circuit voltage: Approx. 0.4mA Test Current
Capacitance 40/400nF/4/40/400/4000µF
Frequency 10/100/1000Hz/10/100/1000kHz/10MHz
DUTY 0.1 to 99.9% (Pulse width/Pulse period) ±2.0%±2dgt (to 10kHz)
Applicable standards IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2 IEC 61010-031 IEC 61326
Display 6040 Counts
Power source R6 (1.5V) × 2 (Auto-power-OFF within 15 minutes)
Dimension 161(L) × 82(W) × 50(D)mm
Weight Approx. 280g
Accessories 7066A (Test leads) 8918 (Ceramic fuse[0.8A/600V]) × 1 (included) 8919 (Ceramic fuse[10A/600V]) × 1 (included) R6 × 2 Instruction Manual
Optional accessories 7234 (Crocodile clip test lead) 9095 (Carrying case)

Catalog reference: KYORITSU General Catalog 2026, page 19

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
