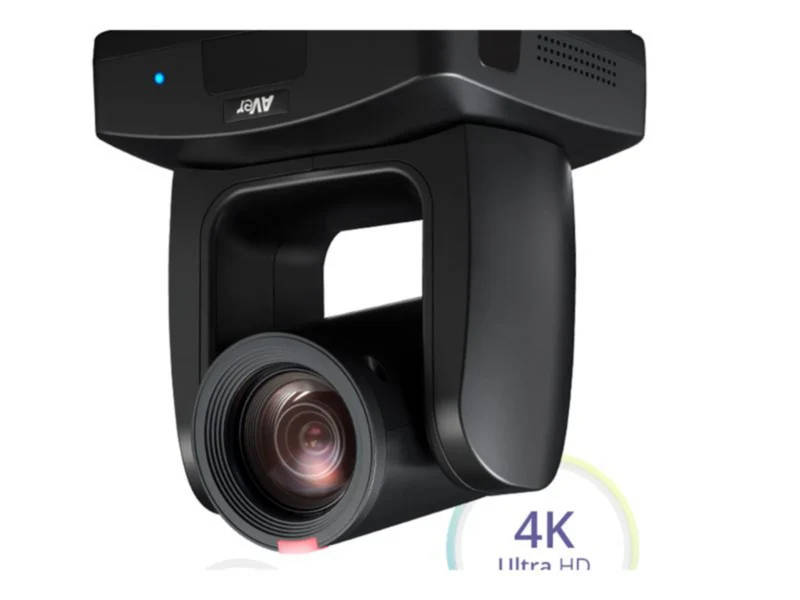

Cámara PTZ AVer TR315 V3 12x Zoom Óptico 4Kp60 AI Auto Tracking

Sobre este producto

• 📽️ Proyector AVer TR315 V3 12x Optical Zoom 4Kp60 AI Auto Tracking Camera: para presentaciones, aulas, salas de reunión y proyección profesional.
• ✅ Three Auto Tracking Modes
• ✅ 3G-SDI, HDMI, IP USB Output
• ✅ 1/2.8" CMOS Image Sensor
• ✅ 12x Optical Zoom
• ✅ Wide Dynamic Range
• ✅ H.264, H.265, MJPEG Video Compression

Característica	Detalle
Marca	AVer
Línea de producto	AVer
Modelo	TR315
Fabricante	AVer
Host Interface	USB 3.1
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, CGI, DHCP, HLS, HTTP, HTTPS, ICMP, IGMP, IPv4, LLDP, RTCP, RTMP, RTP, RTSP, SRT, TCP/IP, UDP/IP
Connectivity Technology	Wired
Ports	3G-SDI - BNC, Audio line-in/microphone, HDMI, LAN/power - RJ-45, Serial RS-232 - 8 pin mini-DIN, Serial RS-422 - RJ-45, USB 3.0 - 9 pin USB Type B
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	-30 to +90
Touchscreen	No
Audio Formats	AAC-LC, PCM
Audio Support	Yes
Camera Mechanical Design	Pan / tilt / zoom
Control Interface	RS-232, RS-422, VISCA
Digital Zoom	12
Horizontal Resolution (TV Lines)	1600
Max Frame Rate	60 frames per second
Max Panning Speed (degree/sec)	200
Max Tilting Speed (degree/sec)	200
Max Video Resolution	3840 x 2160
Panning Range (degree)	-170 to +170
Shutter Speed (Max)	1/32000 second (time unit)
Shutter Speed (Min)	1 second (time unit)
Video Modes	1080/25p, 1080/29.97PsF, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 4K/25p, 4K/29.97p, 4K/30p, 4K/50p, 4K/59.94p, 4K/60p, 720/50p, 720/59.94p, 720/60p
Video Signals	3G-SDI, HDMI, USB
Camera Mount Type	Ceiling mount
Camera Type	Conference camera
Low Voltage Power	DC 12 V / PoE Plus
Power Consumption Operational	19 watt
Tipo de fuente	Power adapter
Voltaje requerido	AC 100-240 volt
Software Certification	Zoom Certified
Angular Field of View (D, Max, Degree)	80.6
Angular Field of View (D, Min, Degree)	7.7
Angular Field of View (H, Max, Degree)	72.8
Angular Field of View (H, Min, Degree)	6.7
Angular Field of View (V, Max, Degree)	44.1
Angular Field of View (V, Min, Degree)	3.8
Power Device Form Factor	External
Focal Length Control	Motorized zoom
Focus Modes	Automatic, Manual
Lens Aperture	F/1.6-2.8
Max Focal Length	46.8 millimetre
Temp. máx. de operación	104 degree Fahrenheit
Min Focal Length	3.9 millimetre
Min Focus Distance	11.8 inch
Temp. mín. de operación	32 degree Fahrenheit
Minimum Illumination	0.46 lux F1.6 - 50 IRE
Humedad de operación	20 - 80%
Operating System Required	Apple iOS 11 or later, Apple macOS High Sierra 10.13 or later, Microsoft Windows 7 or later
Optical Zoom	12
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	8,000,000 pixels
Video Formats	H.264, H.265, MJPEG, YUY2
Video Input	Color
Características	256 preset positions, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Auto exposure control, Auto gain control, Auto tracking, Auto white balance, Backlight Compensation (BLC), Barco ClickShare compatible, Constant Bit Rate (CBR), Gesture Control, Hybrid tracking, Image flip, Image mirror, IR sensor, Manual exposure, Manual gain control, Manual white balance, ONVIF support, PELCO D protocol support, PELCO P protocol support, Presenter tracking, Sleep mode, Tally light, USB audio class (UAC 1.0), USB video class (UVC 1.1), Variable Bit Rate (VBR), VISCA over IP, Voice tracking, Wide Dynamic Range (WDR), Zone tracking
Cantidad por empaque	1
Security Slot Type	Kensington security slot
Theft Protection	Security lock slot (cable lock sold separately)
Cables	1 x DB-9 to DIN-8 cable - external, 1 x RS-232 cable - external
Accesorios incluidos	Cable fixing plates, Cable ties, Ceiling mount kits, Drilling paper, Power cable, Remote control, Screws
Alto	7.6 inch
Weight	4.41 lbs
Ancho	7.1 inch
Profundidad	5.7 inch
Color	Black
Estándares	NDAA
TAA Compliant	Yes
