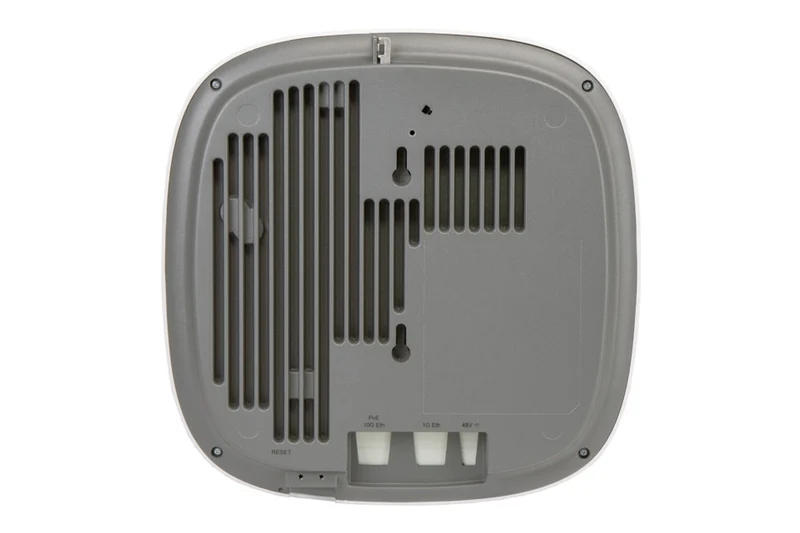

Access Point Ruckus R770 Wi-Fi 7 Tri-Band Concurrent Wireless Access Point

Sobre este producto

• 📶 Wi-Fi 7 tri-band: ocho spatial streams (2x2:2 en 2.4 GHz, 4x4:4 en 5 GHz, 2x2:2 en 6 GHz).
• ⚡ Tasa de datos combinada de 12.22 Gb/s.
• 📡 Funciones Wi-Fi 7: multi-link operation, preamble puncturing, 4K QAM y canales de 320 MHz.
• 👥 Alta capacidad: transit hubs, auditorios y centros de conferencias.
• 🛡️ Seguridad avanzada simplificada y stack IoT integrado.

Característica	Detalle
Marca	Ruckus
Línea de producto	Ruckus
Modelo	R770
Fabricante	Ruckus Wireless
Estándares	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, Wi-Fi CERTIFIED 7
Connectivity Technology	Wireless
Protocolos de enlace	Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee
Data Transfer Rate	12.22 GBps
Características	2x2:2 streams, 4x4:4 streams, 802.1x authentication, Access Control List (ACL) support, Adaptive band balancing, Airtime Fairness, Airtime-based WLAN Prioritization, Backhaul Technology, BeamFlex+ Smart Antenna Technology, Beamforming technology, Bluetooth Low Energy (BLE), Captive Portal, ChannelFly, Client load balancing, Device fingerprinting, Guest access, HotSpot 2.0, IPv4 and IPv6 dual stack, LLDP support, Low Density Parity Check (LDPC), MU-MIMO technology, Multi-Link Operation (MLO), Port-based VLAN, PowerSave, Preamble puncturing, Quality of Service (QoS), Rate limit, Secure Boot, SmartMesh, SmartRoam, SmartZone, Space Time Blocking Code (STBC), Spectrum Analysis, SpeedFlex, SU-MIMO technology, Trusted Platform Module 2.0 (TPM 2.0), URL filtering, VLAN pooling, Web authentication, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISPr authentication
Factor de forma	Desktop / wall / ceiling mountable
Network Band	2.4 GHz, 5 GHz, 6 GHz
Network Standard	IPv4, IPv6
Tipo de producto	Wireless access point
Routing Protocol	GRE
Wireless LAN	802.11a/b/g/n/ac/ax/be, Bluetooth, ZigBee
Interfaces	1 x 1000Base-T - RJ-45, 1 x 10Gb Ethernet - RJ-45, 1 x USB 2.0 - Type A
Antenna Form Factor	Internal
Antenna Gain Level	4 DBi
Encryption	Dynamic PSK, Opportunistic Wireless Encryption (OWE), PMF, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE
Internet of Things (IoT) Compatible	Yes
Temp. máx. de operación	122 degree Fahrenheit
Temp. mín. de operación	14 degree Fahrenheit
Humedad de operación	0 - 95% (non-condensing)
Authentication Method	RADIUS
Capacity	Concurrent users: 1024, SSIDs total: 36
País	United States
IoT Communications Technology	Bluetooth Low Energy (LE), Zigbee
Cantidad por empaque	1
Ruggedized Design	Indoor
Service Activation	No
Network Device	Channel width: 20 / 40 / 80 / 160 / 320 MHz, Maximum data rate (2.4 GHz): 689 Mbps, Maximum data rate (5 GHz): 5765 Mbps, Maximum data rate (6 GHz): 5765 Mbps
Accesorios incluidos	Adjustable acoustic drop ceiling bracket
Alto	2.3 inch
Weight	3 lbs
Ancho	9.2 inch
Profundidad	9.2 inch
Color	White
Certificado ENERGY STAR	No
Cumple EPEAT	No
TCO Certified	No
