Marca: Cisco

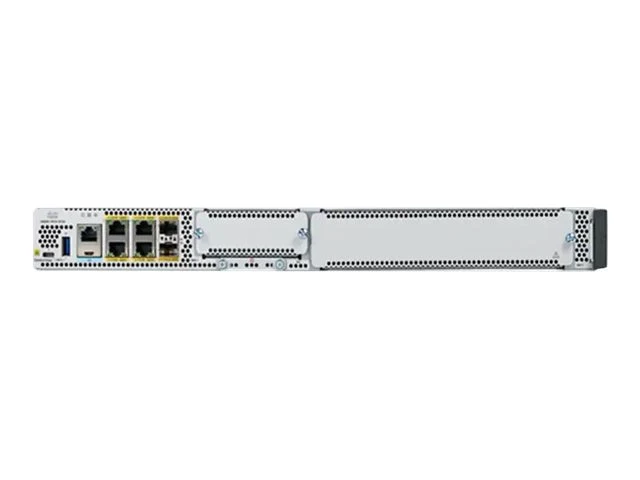

Accesorios de Redes Cisco Catalyst 8300-1N1S-4T2X
Descripción
Sobre este producto
- 🏢 Router de borde Catalyst 8300 construido para alto rendimiento y servicios SD-WAN integrados.
- 🔌 Alta densidad de puertos WAN con capacidad de fuente de poder redundante y variedad de interfaces (10GbE).
- ⚙️ Cisco IOS XE: arquitectura de software totalmente programable con soporte API para automatización a escala y zero-touch IT.
- 🔒 Trustworthy Solutions 2.0: verificación de integridad y remediación de amenazas y vulnerabilidades.
- 🗄️ Rack-mountable, ideal para sucursales medianas y grandes con alto rendimiento IPSec WAN.
| Característica | Detalle |
|---|---|
| Marca | Cisco |
| Línea de producto | Cisco Catalyst |
| Modelo | 8300-1N1S-4T2X |
| Fabricante | Cisco Systems |
| Marca del procesador | Intel |
| Flash Memory Installed | 8 GB |
| RAM instalada | 8 GB |
| Capacidad de disco | 16 GB |
| Estándares | IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3ah |
| Connectivity Technology | Wired |
| Protocolos de enlace | 10 Gigabit Ethernet, Gigabit Ethernet |
| Características | Access Control List (ACL) support, Application Aware Routing (AAR), Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Bidirectional Forwarding Detection (BFD), Call Admission Control (CAC), Cisco IOS IP Service-Level Agreements (IPSLA), Class of Service (CoS), Class-Based Weighted Fair Queuing (CBWFQ), Datagram Transport Layer Security (DTLS), DHCP client, DHCP server, Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), Ethernet Virtual Connections (EVC), Flexible NetFlow (FNF), Forward Error Correction (FEC), Hierarchical Quality of Service (HQoS), High-Level Data Link Control (HDLC), Interactive Voice Response (IVR), Multilink Frame Relay (MLFR), Multilink Point-to-Point Protocol (MLPPP), NAT support, Network-Based Application Recognition (NBAR), PAT support, Point-to-Point Protocol (PPP), Protocol Independent Multicast (PIM), Quality of Service (QoS), Service Advertisement Framework (SAF), Source-Specific Multicast (SSM), Syslog support, URL filtering, Weighted Random Early Detection (WRED) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Network Standard | DHCP, DNS, IPSec, L2TPv3, NTP, PPPoE, RSVP, RTCP |
| Tipo de producto | Router |
| Gestión remota | OMP, SCP, SNMP |
| Routing Protocol | BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, MPLS, OSPF, OSPFv3, Policy-based routing (PBR), RIP, RIP-2, VRRP |
| Expansion Slots | 1 (total) / 1 (free) x NIM, 1 (total) / 1 (free) x service module (SM) |
| Interfaces | USB: 1 x, WAN / LAN: 2 x 10Gb Ethernet, WAN / LAN: 4 x Ethernet 1000 |
| Fuentes soportadas | 1 |
| Encryption | 1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES-CBC, 256-bit AES-GCM, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, ECDSA 256-bit, ECDSA 384-bit, ESP, HMAC, IKE, MD5, PKI, SHA-1, SHA-2, TLS, Triple DES |
| Temp. máx. de operación | 104 degree Fahrenheit |
| Temp. mín. de operación | 32 degree Fahrenheit |
| MTBF | 536,060 Hours |
| Humedad de operación | 5 - 85% (non-condensing) |
| Operating System Required | Cisco IOS XE 17.3.2 |
| Supported Devices | 2 |
| Authentication Method | RADIUS, Secure Shell (SSH) |
| Capacity | Access Control Entries (ACEs) per system (IPv4): 72000, ACL: 4000, Firewall sessions: 512000, IPv4 routes: 1600000, IPv6 routes: 1500000, Maximum overlay tunnels: 6000, NAT sessions: 1200000, Queues: 16000, Virtual Routing and Forwarding (VRF) entries: 4000 |
| Device Type | Internal power supply |
| Installed Devices/Modules | 0 |
| Cantidad por empaque | 1 |
| Service Activation | No |
| VoIP Protocols | SRTP |
| Bridge & Router | IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps, VPN throughput (1400 B IPSec): 15 Gbps, VPN throughput (IMIX IPSec): 5 Gbps |
| Alto | 1.7 inch |
| Altura (unidades de rack) | 1 |
| Weight | 20 lbs |
| Ancho | 17.5 inch |
| Profundidad | 16.3 inch |
| Color | Gray |
| Compatibility Specs | P/N: C8300-DNA |
